Specifications
Brand Name :
LINK-PP
Model Number :
RJSNE-5385-08
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/60K
Price :
$0.11-$24
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Spec :
RJSNE-5385-08
Made in China :
LPJE1082AGNL
Ethernet :
Category 5
Indicator :
LEDs-Green-Yellow
Samples :
Available
Description

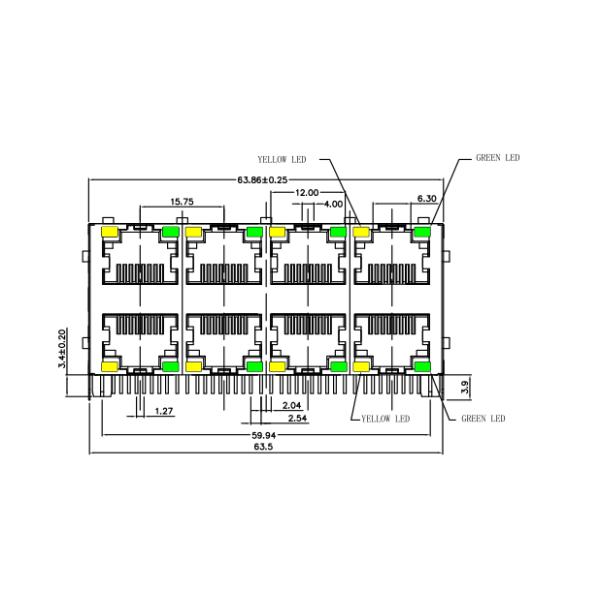

2X4 Ports Stackable Modular Jack RJSNE538508 RJSNE-5385-08 Variety of LED
Introduction

This product specification defines the general use and performance parameters for LINK-PP
LPJE108 series of modular jacks.
Availability:2x4 ports available with a wide variety of LED and shielding options.
Usage
The LPJE108 series of modular jacks supports Ethernet Protocols. Shielding available for increased
EMI performance and LEDs for Link Activity and Network Speed verification.
2X4 Ports Stackable Modular Jack RJSNE538508 , RJSNE-5385-08 Variety of LED
Applications
Intended for use in applications such as:
Networking & Telecom
Wireless (WiMAX)
Network servers
Hubs, routers, switches Office & Home Equipment
PC’s, Laptops, Copiers/Printers
Telephones, modems
Surge Protectors
ATMs, Vending Machines Consumer Goods
Security Systems
Set Top BoxesVideo Game Systems
Miscellaneous
Multi-Media Equipment
Industrial Equipment
POS Terminals
Electrical Characteristics
Contact resistance: 20 mΩ max.
Insulation resistance: 500 MΩ minimum at 500V DC for 2 minutes max.
Current rating: 1.5 Amps
Voltage rating: 125 Volts AC
DWV 1000 VAC, 60 Hz. 1 min.
1500V AC Isolation for Datapins
LED forward DC current: 20mA typical
LED forward Voltage: 1.9 Volts max. @ 2mA (for single colors)
2.6 Volts max. @ 20mA (for Bi-colors)
LED reverse voltage: 5 Volts minimum
LED light intensity: 0.4 to 1.5 mcd @ 2mA (for single colors)
0.5 mcd min. @ 2mA (for Bi-colors)
LED wave length: Yellow: 587± 7 nm measured @ 20mA
Green: 565± 6 nm measured @ 20mA
Red: 625± 5 nm measured @ 20mA
Mechanical Characteristics
Mating connector insertion force: 5.0 lbs. Maximum.
Mating connector pull retention force: 20 lbs Minimum.
Durability: 750 mating & unmating cycles
Recommended soldering temperature: Wave soldering peaked at 260° C for 5 seconds maximum.
Operating temperature: -40° C to +85° C
Material Requirements
RJSNE connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Insulator:
Engineering thermoplastic. Complies with UL 94V-0, Black color
Contacts:
Phosphor Bronze hard temper with gold thickness options (6µ”, 15µ”, 30µ”, 50µ”) over
50µ” minimum Nickel on contact mating area.
100µ” minimum matte tin plating on soldering tail
Shield:
Copper alloy, Nickel plated with tin dipped tail
or stainless steel with tin dipped tail.
LED:
Pure Tin plating on LED tail
