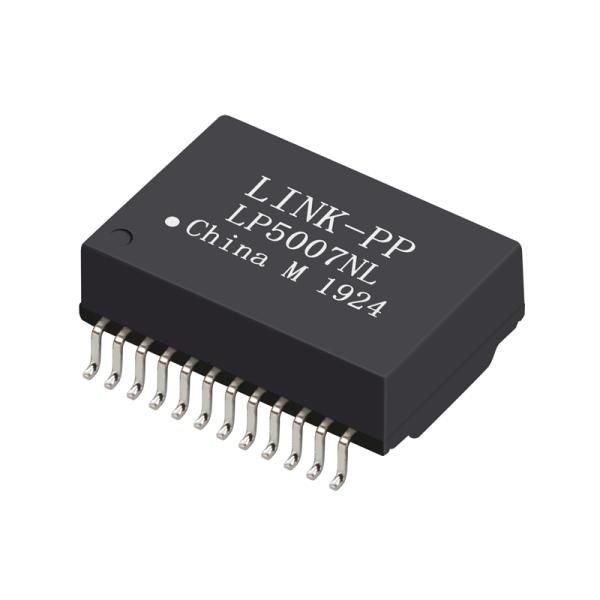

30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL
30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL
30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL
30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL
Specifications
Brand Name :
LINK-PP
Model Number :
LP5007NL
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Item :
30FB-22NL
Cross P.N :
LP5007NL
Pin No :
24 pins
Series :
Single Port GigE Transformer
Termination Style :
SMD/SMT
Isolation Voltage: :
1500V
Samples :
Free Offer
Cross Part :
30FB-22NL = LP5007NL
Lifecycle :
More than 20Years
Description
HX5004NL 1000Base-T Magnetic Transformer Cross By LP5007NL

Features
■ Ethernet Magnetic Transformers LP5007NL Equivalent to 30FB-22NL
■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)
■ Supports 4 pairs of Category 5 UTP cables

30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL

Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature
.................................. -40° C to +85 °C

30FB-22NL Ethernet Magnetic Transformers Cross By LP5007NL

Mfr Package Description
ROHS COMPLIANT
REACH Compliant
Yes
EU RoHS Compliant
Yes
Status
Active More than 20 Years
Transformer Type
DATACOM TRANSFORMER
Application
LAN; 10/100/1000 BASE-T; ETHERNET
Isolation Voltage
1500.0 V
LINK-PP Cross
LP5007NL Series Equivalent Cross
File Available
Datasheet / PDF , 3D Step / IGS
Manufacturer Series
PT61020EL Cross Pin to Pin Analogue
Mounting Feature
SURFACE MOUNT
Number of Functions
4
Operating Temperature-Min
-40.0 Cel
Operating Temperature-Max
85.0 Cel
Packing Method
TAPE & REEL 350pcs/Reel
Physical Dimension
L17.62XB12.2XH6.0 (mm)
Primary Inductance
350.0 µH
Terminal Finish
TIN
Turns Ratio (Np:Ns)
1CT:1; 1CT:1
Height
6.0 mm
Length
17.62 mm
Width
12.2 mm
Additional Feature
HIGHT DIMENSION INCLUDES TEMINAL ALSO
