Specifications
Brand Name :
LINK-PP
Model Number :
LPJ19201BGNL
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
GuangDong, China
MOQ :
600 PCS
Price :
Supportive& Discount
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
150 pcs/reel,6 Reel/Caron,35*35*35 cm, 9KGS(900 pcs) /Carton
Part Number :
LPJ19201BGNL
Specification :
LPJ19201BGNL
Package :
Tape&Reel
Apllication :
1x 10/100Mbps
Munafactuer :
LINK-PP
Samples :
Available Free
Description

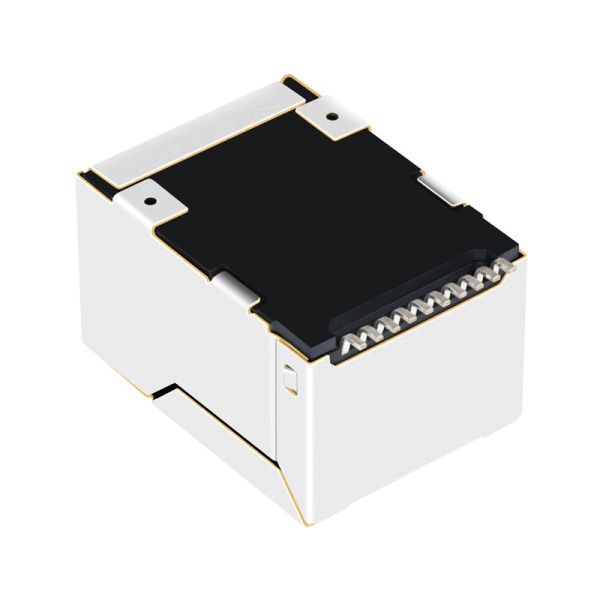

LPJ19201BGNL Surface Mount 1x Rj45 Tab-Up W/ LEDs ,10/100Base-T Ethernet

Specification
Part Number
Manufacturer
Description
LPJ19201BGNL
LPJ19201BGNL
LINK-PP
Surface Mount 1xRj45 Tab-Up W/ LEDs ,10/100Base-T Ethernet
Series
Connector Type
Applications
Mounting Type
Connectors, Interconnects
LINK-PP Rj45
10/100Mbps
 SMD
Package
Termination

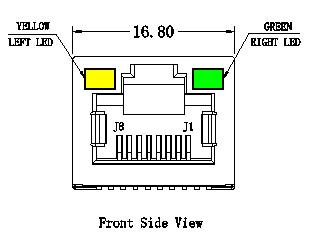

LED Color
Shielding
Tape&Reel
Solder
Yellow /Green
Shielded
Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss(dB Max):
1-80MHz:-1.0 100MHz:-1.2
4.Return Loss(dB Min @100Ω):
1-60MHz:-14 60-100MHz:-10
5.Crosstalk: 1-80MHz:-35dB Min
6.IR Reflow peak temperature: 260 degc.
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: 0℃～70℃.
LPJ19201BGNL Surface Mount 1x Rj45 Tab-Up W/ LEDs ,10/100Base-T Ethernet

LPJ19001AENL
LPJ19201BGNL
LPJ19226DNL
LPJ19408DNL
LPJ19111CNL
LPJ19201BHNL
LPJ19234BHNL
LPJ19412DNL
LPJ19111DNL
LPJ19205DNL
LPJ19234BHNL
LPJ19434-1BHNL
LPJ19112CNL
LPJ192104DNL
LPJ19234DNL
LPJ19434BGNL
LPJ19113CNL
LPJ19210DNL
LPJ19275DNL
LPJ19434BHNL
LPJ19113DNL
LPJ19211CNL
LPJ19280BGNL
LPJ19201DNL
LPJ19165CNL
LPJ19212CNL
LPJ19401BBNL
LPJ19712CNL
LPJ19187CNL
LPJ19213BGNL
LPJ19401BGNL
LPJ19906AGNL
LPJ19201-7BGNL
LPJ19213BHNL
LPJ19401DNL
LPJ19911ADNL
LPJ19201B10NL
LPJ19201BENL
LPJ19406AGNL
LPJ19201BBNL
