LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole
LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole
Specifications
Brand Name :
LINK-PP
Model Number :
SI-40144
Certification :
ISO9001,SGS,UL,CE,REACH163
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.11-$12
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
208K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Specification :
SI-40144
Part Number :
LPJ46201AFNL
Connector Type :
Quad Port RJ45
Applications :
4x10/100Base-T
Mounting Type :
Through Hole
Orientation :
90～ Angle (Right)
Termination :
Solder
Samples :
Available
Description

LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole

Stewart Connector SI-40144
Quad Port RJ-45
1x4 Fast Jack
10/100 Rj45 Magjack
  • Modular Connectors - Jacks With Magnetics
  • 10/100 Base-T, AutoMDIX
  • Through Hole
  • 90° Angle (Right)
  • Green - Green
  • Shielded, EMI Finger

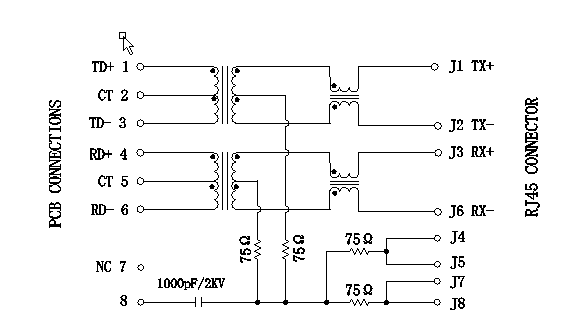

Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min):
1～30MHz:-16 30～60MHz:-12
60～80MHz:-10
5.Crosstalk(dB Min):
1～30MHz:-40 30～60MHz:-35
60～100MHz:-30
6.CMR(dB Min):
1～50MHz:-40 50～150MHz:-30
7.Hipot: 1500V AC 6S 1mA
8.Operating Temperature: 0℃～70℃/-40° to +85° CNOTES:

1.Designed to support application,such as SOHO(ADSL modems),

LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave peak temperature: 260℃,5Sec.
LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole

LPJ46201AFNL Cross SI-40144 Belfuse MagJack 4x10/100Base-T, Through Hole
SI-40144 Belfuse
