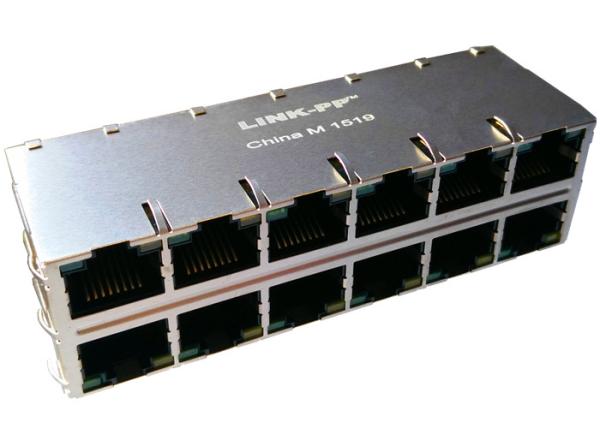

MD-15224TRU3-1 RJ45 multiport 2X6 10/100/1000 Base-T Through Hole
MD-15224TRU3-1 RJ45 multiport 2X6 10/100/1000 Base-T Through Hole
MD-15224TRU3-1 RJ45 multiport 2X6 10/100/1000 Base-T Through Hole
MD-15224TRU3-1 RJ45 multiport 2X6 10/100/1000 Base-T Through Hole
Specifications
Brand Name :
LINK-PP
Model Number :
MD-15224TRU3-1
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/60K
Price :
$0.11-$24
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Midcom PN :
MD-15224TRU3-1
Made In China :
SM-LPJG67037AENL
Application :
Gigabit Ethernet Switch
Shield :
Shielded Wo/LEDs
Port :
1x2 Dual
Hipot :
1500V
Description

MD-15224TRU3-1 RJ45 multiport 2X6 10/100/1000 Base-T Through Hole

MD-15224TRU3-1 UDE

Trader Part Number

MD-15224TRU3-1

Price Break

Unit Price

Extended Price

1-5

A

-

10-50

B

-

100-500

C-1

-

1,000-2,500

Supportive

-

5,000

Dynamic

Dynamic

10,000

Dynamic

Dynamic

50,000

Negotiable

Negotiable

100,000

Negotiable

Negotiable

500,000

Negotiable

Negotiable

Made in China

SM-LPJG67037AENL

Manufacturer

LINK-PP China

Description

Gigabit Rj45 Jack Dual port

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks

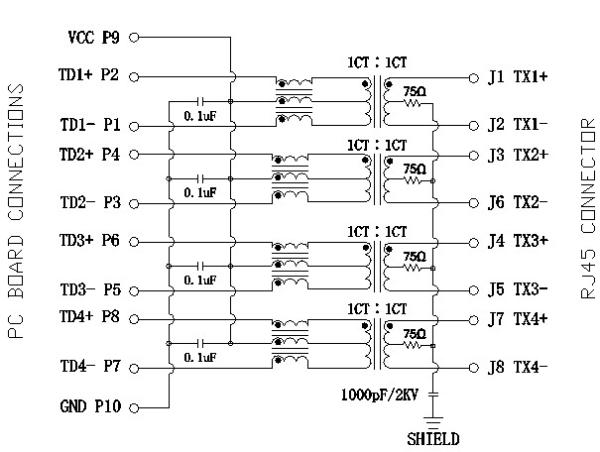

MD-15224TRU3-1 Electrical Specifications @25℃

2.Turns Ratio: 1CT∶1CT
3.Insertion Loss:
0.5～100MHz:-1.1dB Max
4.Return Loss(dB Min):
0.5～30MHz:-18
30.1～60MHz:-18-20Log(f/30MHz)
60.1～80MHz:-12
5.Crosstalk(dB Min):
0.5～40MHz:-35
40.1～100MHz:-33-20Log(f/50MHz)
6.Common Mode Rejection Ratio(CMRR):
0.5～100MHz:-30dB Min
7.Hi-Pot: 1500Vrms @60Hz
8.Operating Temperature: -40℃～+85℃.

MD-15224TRU3-1 RJ45 multiport 2X6 10/100/1000 Base-T Through Hole
