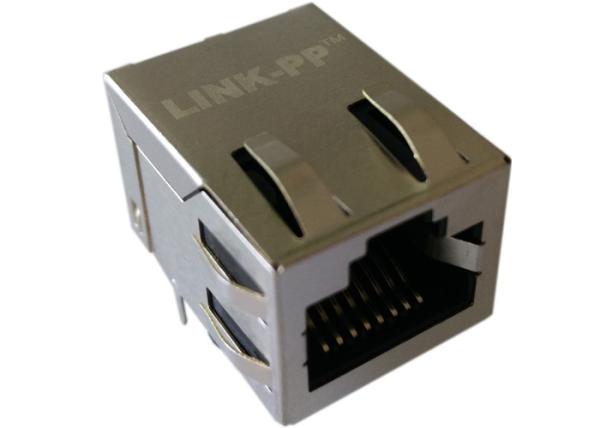

Tyco 6605810-1 Magnetic RJ45 Jack 1000Base-T Schematic Without LEDs LPJG16506CNL
Tyco 6605810-1 Magnetic RJ45 Jack 1000Base-T Schematic Without LEDs LPJG16506CNL
Tyco 6605810-1 Magnetic RJ45 Jack 1000Base-T Schematic Without LEDs LPJG16506CNL
Tyco 6605810-1 Magnetic RJ45 Jack 1000Base-T Schematic Without LEDs LPJG16506CNL
Specifications
Brand Name :
LINK-PP
Model Number :
6605810-1
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specifications :
6605810-1
P.N :
LPJG16506CNL
Application :
100/1000 Mbps
Ethernet :
GIG Ethernet
Port :
1,2,4,6,8 Flexible
Hipot :
1500V
Description
Tyco 6605810-1 Magnetic RJ45 Jack 1000Base-T Schematic Without LEDs LPJG16506CNL

Tyco 6605810-1

Specifications

6605835-1 Tyco Equivalent

Price Break

Unit Price

Extended Price

1-5

Free

Free

10-50

3.0

-

100-500

2.5

-

1,000-2,500

2.0

-

5,000

Dynamic

Dynamic

10,000

Dynamic

Dynamic

50,000

Negotiable

Negotiable

100,000

Negotiable

Negotiable

500,000

Negotiable

Negotiable

Made in China

LPJG16506CNL

Manufacturer

LINK-PP China

Description

Gigabit Rj45 Jack Wo/LED

Lead Free Status / RoHS Status

Lead free / RoHS Compliant

Quantity Available

2,000 PCS or 4 weeks

Tyco 6605810-1 Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@ 100KHz,0.1Vrms,8mADC BIAS
3.Turns Ratio:
TX=1:1 RX=1:1
4.Insertion Loss:
0.5-100MHz:-1.1dB Max
5.Return Loss(dB Min):
0.5-40MHz:-18
40.1-100MHz:-[12-20LOG(f/50)]
6.Crosstalk(dB Min):
0.5-40MHz:-35
40.1-100MHz:-[33-20LOG(f/50)]
7.Common Mode Rejection Ratio:
0.5-100MHz:-30 dB Min
8.Isolation Voltage: 1500Vrms
9.Operating Temperature: 0℃～70℃./ -40℃～85℃.

Tyco 6605810-1 Magnetic RJ45 Jack 1000Base-T Schematic Without LEDs LPJG16506CNL

Tyco 6605810-1 Magnetic RJ45 Jack 1000Base-T Schematic Without LEDs LPJG16506CNL
