ARJ-146 RJ45 1000 Base-T Jack with Magnetic Module , PoE IEEE802.3af standard
ARJ-146 RJ45 1000 Base-T Jack with Magnetic Module , PoE IEEE802.3af standard
Specifications
Brand Name :
LINK-PP
Model Number :
ARJ-146
Certification :
ISO9001,SGS,UL,CE,REACH163
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 9 KGS (1200pcs) of each carton
part Number :
ARJ-146
Mass Production :
LPJKXXXNL
Original Munafactuer :
LINK-PP
Application :
10/100/1000Base-T
Termination :
Solder
Type :
DIP / Side Entry
Description

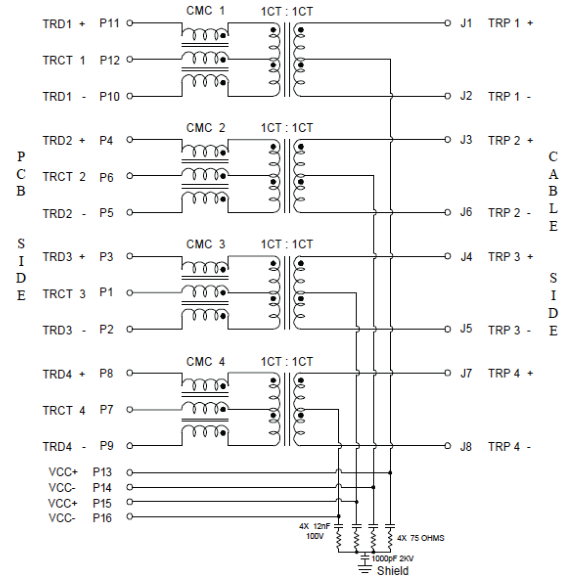

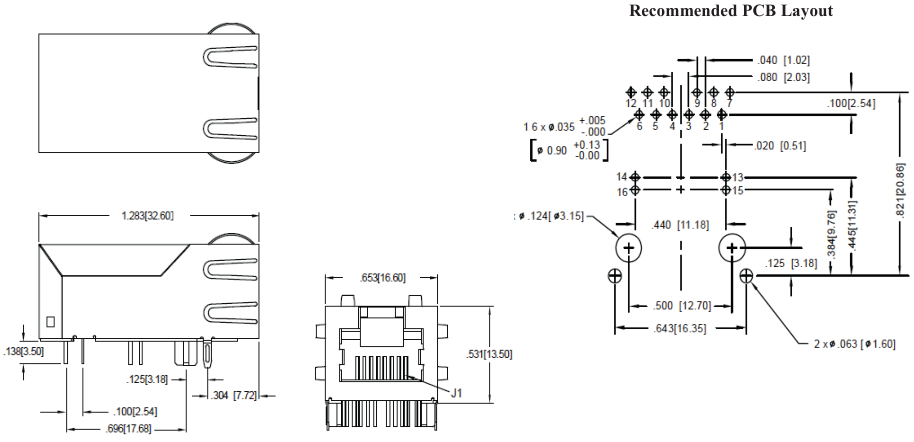

ARJ-146 RJ45 1000 Base-T Jack with Magnetic Module , PoE IEEE802.3af standard

ARJ-146 RJ45 Single Port 10/100/1000Base-T RJ45 With/Without LED

ELECTRICAL SPECFICATIONS: @25℃


1.Inductance: 350uH Min
@ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min
60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.HI-POT:1500Vrms Min @60Hz
8.Operating Temperature Range: 0℃ TO 70℃ / -40℃ To 85℃

• Designed for most leading PHY IC manufacturers such as Broadcom,
Marvell, Microsemi.
• Supports 10/100 Base-Tapplications
• Provides signal conditioning, EMI suppression and signal isolation.

ARJ-146 RJ45 1000 Base-T Jack with Magnetic Module , PoE IEEE802.3af standard
ARJ-146 ARJC02-111008B ARJ11C-MBSAU- A-B-xMU2
ARJ11A-MASL-QU2 ARJC02-111009D ARJ11C-MCSAT- A-B-xMU2
ARJ11A-MASM-RT2 ARJC07-111071A ARJ11C-MASAA- B-A-xLU2
ARJ11A-MDSN-MU2 ARJC02-111006K ARJ11C-MASAB- B-A-xMU2
ARJ-101D ARJC02-111008B ARJ11C-MASAD- A-A-xMU2
ARJ11B-MASAA-MU2 ARJC02-111006K ARJ-101D
ARJ11B-MASAI-MU2 ARJ-146 ARJ11D-MASB-B-A-XMU2
ARJ11B-MASAJ-MU2 ARJE-0029 ARJ11D-MCSC-LU2
ARJ11B-MASAM-MU2 ARJC02-111006K ARJ11D-MDSD-A-B-XLT2
ARJ11B-MASAN-LU2 ARJC02-111008B ARJ11D-MCSD-LT2
ARJ11B-MASBF-LU2 ARJ-146 ARJ11D-MDSE-A-B-XMU2
ARJ11B-MESCB-A-B-ELT2 ARJC02-111006K ARJ11D-MASE-A-B-XMU2
ARJ11B-MASCB-LT2 ARJP11A-MASA-B-A-EMU2 ARJ11D-MDSG-B-A-XMU2
ARJ11B-MBSCB-A-B-ELT2 ARJP11A-MASA-B-A-FMU2 ARJ11D-MASG-B-A-XMU2
ARJ-101D ARJP11A-MBSB-A-B-EMU2 ARJ11D-MASG-A-A-XMU2
ARJ11B-MESBQ-A-B-EMU2 ARJC02-111006E ARJC02-111008B
ARJ11B-MASBQ-MU2 ARJP11B-MASA-B-A-EMU2 ARJ11D-MDSH-A-B-XLU2
ARJ-146 ARJP11B-MBSB-A-B-EMU2 ARJ11D-MASH-B-A-XLU2
ARJ11B-MFSBQ-A-A-EMU2 ARJP11C-MASA-A-B-EMU2 ARJ11D-MBSJ-A-DA-HLT2
ARJ11B-MASAJ-MU2 ARJP11C-MASB-AB-A-FMU2 ARJ11D-MBSK-A-DA-HMU2
ARJ11B-MASBR-QU2 ARJC02-111006E ARJ11D-MBSL-A-DA-HLU2

PHY IC RJ45 ARJ-101D , 10/100 Base-T with Magnetic Module Modular Jack Connector

ARJ-146 RJ45 1000 Base-T Jack with Magnetic Module , PoE IEEE802.3af standard

ARJ-146 RJ45 1000 Base-T Jack with Magnetic Module , PoE IEEE802.3af standard
