LFE8659 10/100Base-T Ethernet Single Port Transformer Modules LP1302NL Cross
LFE8659 10/100Base-T Ethernet Single Port Transformer Modules LP1302NL Cross
Specifications
Brand Name :
LINK-PP
Model Number :
LFE8659
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specification :
LFE8659
Turn Ratio :
1:1
Speed :
10/100Base-T
Port :
Single
Application :
Ethernet (NON PoE)
Mounting :
SMD
Temperature :
0 TO + 70℃
Archivi Disponibil :
PDF/3D/ISG/Stp/Step/Datasheet
Description

LFE8659 10/100Base-T Ethernet Single Port Transformer Modules LP1302NL Cross

LFE8659 => LP1302NL 10/100BT Transformer Module Lan Transformer

1.Single Port Lan Filter

2.ColiStructure: Toroidal

3.10/100 base-t transformer

4.SMT, 16pins

Electrical Specifications @25℃:

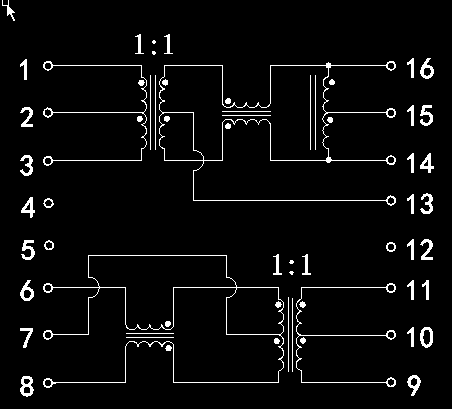

1.Turns Ratio:
TX=1CT:1CT RX=1CT:1CT
2.Insertion Loss:
0.1-100MHz:-1.1dB MAX
3.Return Loss(dB TYP):
30MHz:-16 60MHz:-10
80MHz:-10
4.Crosstalk(dB TYP):
30MHz:-35 60MHz:-30
100MHz:-30
5.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-32
6.Hipot:1500Vrms MIN
7.Operating Temperature:0～70℃

LFE8659 10/100Base-T Ethernet Single Port Transformer Modules LP1302NL Cross

LFE8659 10/100Base-T Ethernet Single Port Transformer Modules LP1302NL Cross

LFE8659 10/100Base-T Ethernet Single Port Transformer Modules LP1302NL Cross
TG110-050N5RL PG4P219AN-2 LF GST5009-E LF LFE8659
H4P140NX LF HG5PNX LF GST5009H LF TS6121CX
H4P041RNX LF LFE8659 TG110-050N5RL TS6121K
HG2PM109N LF BCM-5855CI LF G4P109 LF LFE8659
40SS1040AXM2 HF 4S1068 HF G4P209 LF TS8121C
40SS1041A HF 4S1070 HF LFE8659 TS8121CX
40SS1041AX HF 4S1142 HF GOP109 LF S5833H LF
40SS1041RX HF 4S1344M1 LF TG110-050N5RL 12ST0020P LF
LFE8659 LFE8659 GP5409 LF 12ST0022P LF
40SS1140AX1 HF S6800 LF GP5419NY LF 12ST0022PF LF
TG110-050N5RL S1188M HF TG110-050N5RL TG110-050N5RL
40SS1041 HF S5498 LF GP5419R LF LFE8659
40ss1041AXM HF S5612 LF LFE8659 24SH10410 HF

LFE8659 10/100Base-T Ethernet Single Port Transformer Modules LP1302NL Cross
