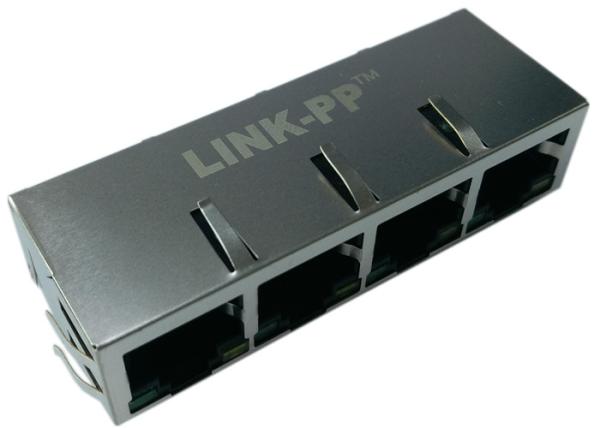

Female RJ45 1x4 Shield W/LED Quad Port 1000Base-T HFJ14-E1G46ER-L11RL
Female RJ45 1x4 Shield W/LED Quad Port 1000Base-T HFJ14-E1G46ER-L11RL
Specifications
Brand Name :
LINK-PP
Model Number :
HFJ14-E1G46ER-L11RL
Certification :
ISO9001,SGS,UL,CE,REACH163
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.11-$12
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
208K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Design PN# :
HFJ14-E1G46ER-L11RL
Samples :
Available Free
Orientation :
90° Angle (Right)
Interface :
1000Mbps
LED :
Flexible
Made In China :
SM-LPJG46XXXANL
Description

Female RJ45 1x4 Shield W/LED Quad Port 1000Base-T HFJ14-E1G46ER-L11RL

HFJ14-E1G46ER-L11RL
Trader Part Number
 HFJ14-E1G46ER-L11RL
Price Break
Unit Price
Extended Price
1-5
AF
-
10-50
BE
-
100-500
C-12
-
1,000-2,500
Supportive
 Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
Negotiable
Negotiable
100,000
Negotiable
Negotiable
500,000
Negotiable
Negotiable
Made in China Cross
SM-LPJG46XXXANL
Manufacturer
LINK-PP China
Description
 Rj45 4 Ports 1000M Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks

HFJ14-E1G46ER-L11RL ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
1CT:1CT
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms
HFJ14-E1G46ER-L11RL HFJ14-1G16ERL AR11-3909I AR26-4057
HFJ14-E1G16ER-L11RL AR21-4042 ARA517-1252S AR28-3771
HFJ14-E1G41ER-L11RL AR21-3977 AR11-3846 AR28-3768

1000 Base-T
Impedance: 100OHMS
RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F

Industrial Operating Temp: 0ºC to +70ºC Or -40ºC to +85ºC
Optional Gold Plating Thickness
Other LED Patterns available
