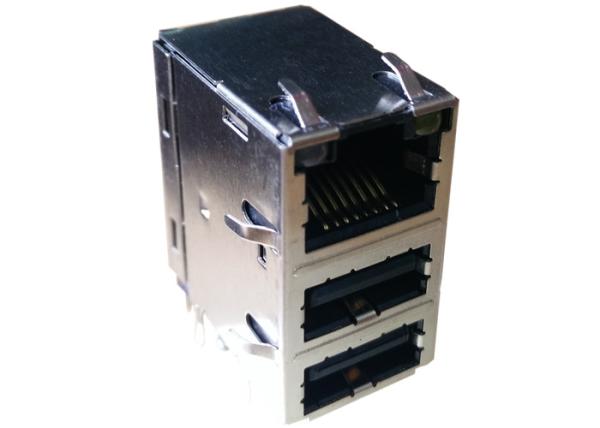

RJMG-7312-81-01 Conn RJ-45/Dual USB Thru-Hole Stacked USB Connector 3 Port
RJMG-7312-81-01 Conn RJ-45/Dual USB Thru-Hole Stacked USB Connector 3 Port
Specifications
Brand Name :
LINK-PP
Model Number :
RJMG-7312-81-01
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/60K
Price :
$0.11-$24
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Designe PN# :
RJMG-7312-81-01
Made In China :
SM-LPJU4111AGNL
Family :
Rj45 Network Port
Interface :
10/100Mbps
LED :
Flexible
Samples :
Available
Description

RJMG-7312-81-01 Conn RJ-45/Dual USB Thru-Hole Stacked USB Connector 3 Port

RJMG-7312-81-01 Amphenol
Trader Part Number
RJMG-7312-81-01
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
-
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
Negotiable
Negotiable
100,000
Negotiable
Negotiable
500,000
Negotiable
Negotiable
Made in China
SM-LPJU4111AGNL
Manufacturer
LINK-PP China
Description
 10/100M Modular Rj45
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks

Amphenol RJMG-7312-81-01

Electrical Specifications @25℃
1.TR:(100KHz,0.1V):
TX=1CT:1CT ±2% RX=1CT:1CT ±2%P

2.LX(100KHz,100mV,8mA,DC Bias):
350uH min
3.INSERTION LOSS:
-1.1dB MAX @ 0.5MHz TO 100MHz
4.RETURN LOSS:
-18dB MIN @ 0.5MHz TO 40MHz
-[18-20LOG(f/30)]dB MIN @ 40.1MHz TO 60MHz
-12dB MIN @ 60.1MHz TO 80MHz
5.CROSS TALK:
-35dB MIN @ 0.5MHz TO 40MHz
-[33-20LOG(f/50)]dB MIN @ 40.1MHz TO 100MHz
6.COMMON MODE REJECTION RATIO(CMRR):
-30dB MIN @ 0.5MHz TO 100MHz
7.HI-POT: 1500Vrms
8.OPERATING TEMPERATURE: 0℃ TO 70℃.
