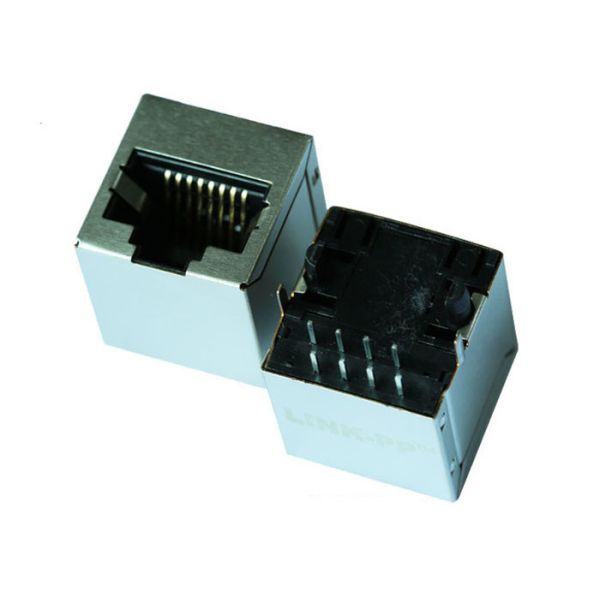

Top Entry Gigabit Rj45 Connector JD3-0001NL Vertical 10/100/1000Base-T Shield
Top Entry Gigabit Rj45 Connector JD3-0001NL Vertical 10/100/1000Base-T Shield
Specifications
Brand Name :
LINK-PP
Model Number :
JD3-0001NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
Tray & Carton&Reel
Designe PN# :
JD3-0001NL
Made In China :
SM-LPJ1XXXDNL
Category :
Rj45 Vertical Entry
Interface :
10/100/1000Base-T
LED :
Flexible Designed
Samples :
Available
Description

Top Entry Gigabit Rj45 Connector JD3-0001NL Vertical 10/100/1000Base-T Shield

JD3-0001NL
Trader Part Number
JD3-0001NL
Price Break
Unit Price
Extended Price
1-5
A
-
10-50
B
-
100-500
C-1
-
1,000-2,500
Supportive
 Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
Negotiable
Negotiable
100,000
Negotiable
Negotiable
500,000
Negotiable
Negotiable
Made in China
SM-LPJ1XXXNL
Manufacturer
LINK-PP China
Description
 Rj45 Vertical Entry
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks

JD3-0001NL ELECTRICAL SPECFICATIONS @
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss:
1-65MHz:-1.0dB Max
4.Return Loss(dB Min @100Ω± 15Ω):
1-10MHz:-20 30MHz:-16
60-80MHz:-12
5.Crosstalk(dB Min):
1-10MHz:-40 30-60MHz:-35
60-100MHz:-30
6.Common Mode Rejection(dB Min):
1-50MHz:-30 50-130MHz:-20
7.Isolation Voltage: 1500Vrms Min
