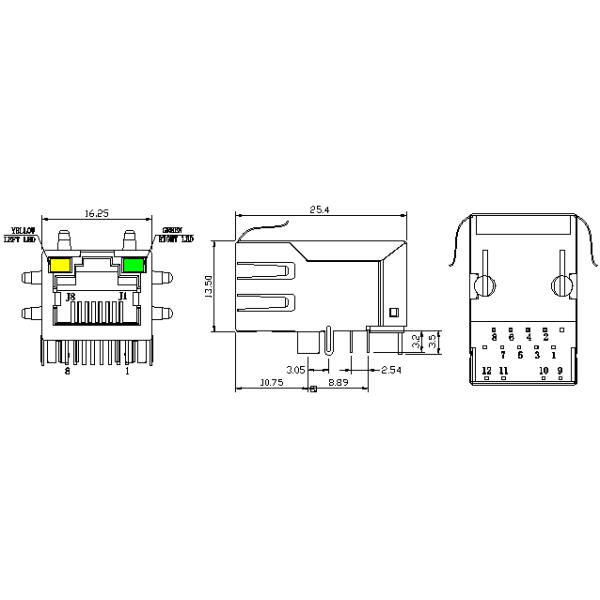

Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port
Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port
Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port
Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port
Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port
Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port
Specifications
Brand Name :
LINK-PP
Model Number :
SI-50158-F
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
part Number :
SI-50158-F
Made In China :
SM-LPJ1014AGNL
Original Munafactuer :
LINK-PP
Project Application :
Networking Solutions
Termination :
Solder
Samples :
Available
Description

Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port

Part Number
Made In China
Manufacturer
Description
SI-50158-F
SM-LPJ1014AGNL
LINK-PP
Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port
Series
Connector Type
Applications
Mounting Type
Connectors, Interconnects
LINK-PP Rj45
Ti BeagleBone Black
Thru-Hole
Orientation
Termination
LED Color
Shielding
90° Angle (Right)
Solder
Yellow/Green
Shielded, EMI Finger

SI-50158-F TEST NOTES(25±5℃)
1.TR:(100KHZ,100mV);
TX=1CT:1CT ±3% RX=1CT:1CT ±3%P
2.LX:(100KHZ,100mV,8mA,DC Bias)
PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
PINS(P1,P2,P3)TO (J1,J2)=1500V
PINS(P4,P5,P6)TO (J3,J6)=1500V
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @1MHz TO 50MHz
-20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0℃～70℃.
V811-1X4T-03
MJR11D2GYA0-H33D
RM6-10KARV1F
678384005
V811-1X4T-03-F
MJR11D2GYA0-H34F
RM7-10KARU1F
678384006
V811-1X4T-06
MJR11D2GYA0-K30Y
RM9-1SKARU1F
678384104
V811-1X4T-06-F
MJR11D2GYA0-K33D
RMT-131AGF1F
855035001
V890-1AX1-A1
MJR11D2GYA1-H30Y
RN2-10N0F41F
855045001
V890-1AX1-A1
MJR11D2GYA1-H33D
RN6-10W0F51F
855055002
V890-1AX1-A1A
MJR11D2GYA1-H34F
RS3-2840H41A
855055113
V890-1AX1-V6
MJR11D2GYA1-K30Y
RSBH20108K1F
855105017
V890-1AX1-Y5
MJR11D2GYA1-K33D
RT2-10FB4K1A
855105018
V890-1CX1-46
MJR11D2NNA0-H30Y
RT5-1070NM3D
855105019
V890-1CX1-A1
MJR11D2NNA0-H33D
RT5-1670KC2F
855105020
V890-1CX1-Y5
MJR11D2NNA0-H34F
RT5-1950K21F
855105025
V890-1G1T-A1
MJR11D2NNA0-K30Y
RT7-103ABP1A
855105026
V890-1GX1-V6
MJR11D2NNA0-K33D
RT7-103GG41A
855105027
V890-1GX1-Y5A
MJR11S2NNA4-H34L
RT7-104A8K2A
855105028
V890-1RX1-46
MJR11S2NNA4-H359
RT7-114AAG1A
855105117
V890-1RX1-A1
MJR11S2NNA4-H35V
RT7-114ABP1A
855105118

Belfuse Jack SI-50158-F Magnetic Jack Rj45 10/100BASE-T Lan Port
