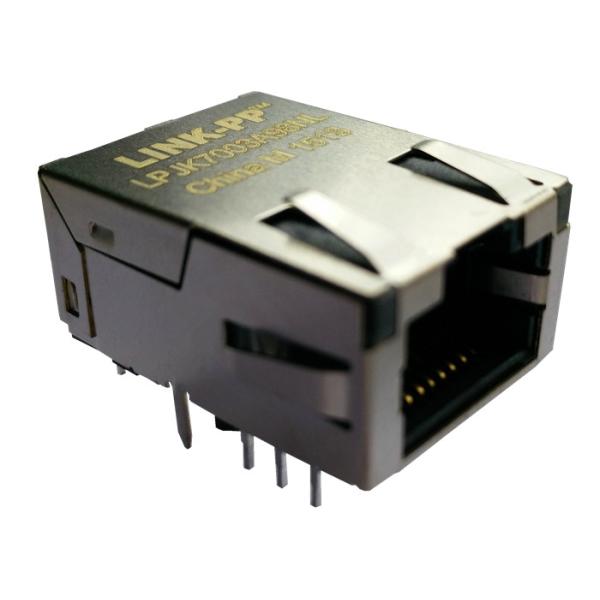

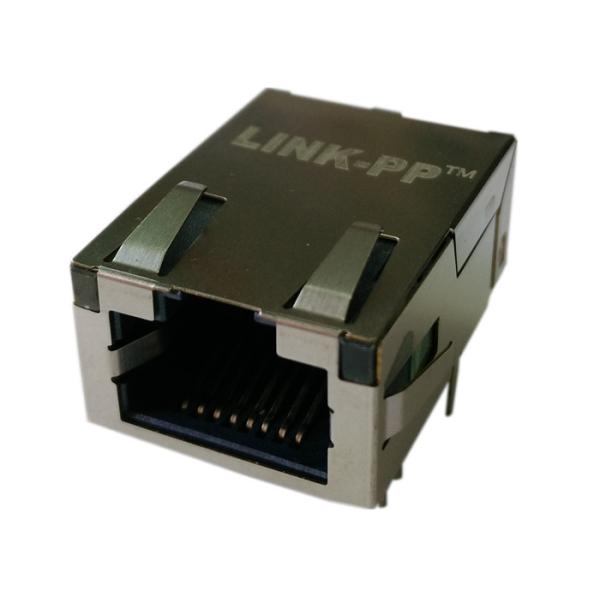

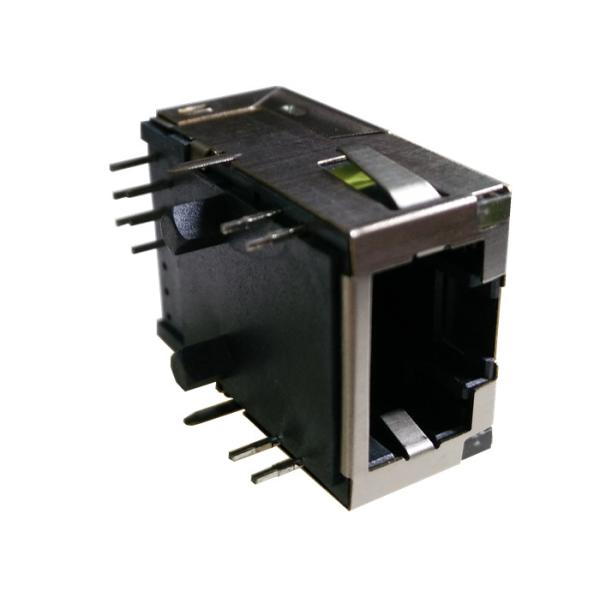

J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
J0G-0001NL 1x1 Tab-Up Low Profile RJ45 Connector LPJK7003A98NL
Specifications
Brand Name :
LINK-PP
Model Number :
J0G-0001NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
$0.08-$1.79
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
2800K-PCS/Month
Delivery Time :
Stock
Packaging Details :
60pcs/tray,or Reel Package
Part Number :
J0G-0001NL
LATCH :
UP
Mounting :
THT
NUMBER OF PORTS :
1X1
LED OPTION :
GREEN/ORANGE & YELLOW
POE RATING :
NON-POE
SPEED :
1000BASE-T
TEMPERATURE :
0 TO 70℃
Description

J0G-0001NL Low-Profile 1x1 Tab-up RJ45 Conennctor Support 10/100/1000Base-T

Part Number

 LINK-PP Cross P/N

Manufacturer

Description

J0G-0001NL

LPJK7003A98NL

LINK-PP

J0G-0001NL Low-Profile PulseJack

Series

Number of Ports

Applications

Mounting Type

Integrated Magnetics Connector

single port (1x1)

10/100/1000 Mbps

Thru-Hole

Orientation

Termination

LED Color

Shielding

90° Angle (Right)

Solder

Green, Orange - Yellow

Shielded, EMI Finger

ELECTRICAL SPECIFICATIONS:


1. TURN RATIO @100KHz:
(P2~P3):(J1~J2)= 1:1±5%
(P4~P5):(J3~J6)= 1:1±5%
(P6~P7):(J4~J5)= 1:1±5%
(P8~P9):(J7~J8)= 1:1+5%
2. PRIMARY INDUCTANCE: 350UH MIN @100KHZ, 0.1V 8mA DC BIAS
3. DC RESISTANCE: 1.2 OHMS MAX
4. INSERTION LOSS:
1-125MHZ: -1.0dB TYP
5. RETURN LOSS:
1-40MHZ: -16dB MIN
40-60MHZ: -12dB MIN
6. CROSS TALK:
60-80MHz: -10dB MIN
80-100MHZ: -8dB MIN
1-100MHZ: -30dB MIN
7. COMMON TO COMMON MODE ATTENUATION: 1-100MHz: -30dB MIN
8. ISOLATION: PHY SIDE TO LINE SIDE: 2250VDC

J0G-0001NL PulseJack Description:


J0G-0001NL 100/1000Base-T RJ45 single port (1x1) Tab-UP integrated magnetic connector is designed to support applications such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM), and PC applications.

  • Compliant with IEEE 802.3 standard
  • 350µH minimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Low height and small footprint to minimize board space
  • RoHS peak wave solder temperature rating 260°C

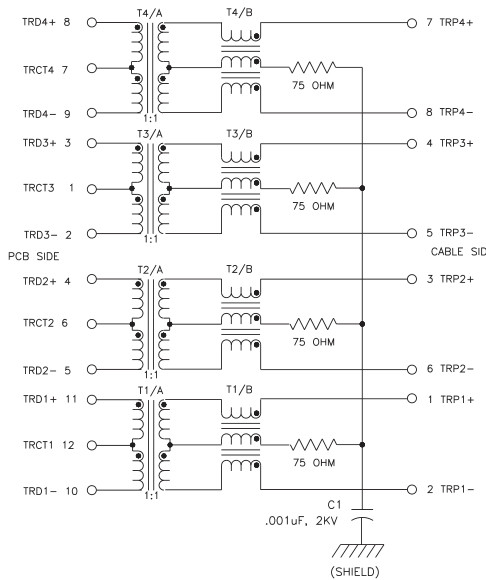

J0G-0001NL Datasheet SCHEMATIC
