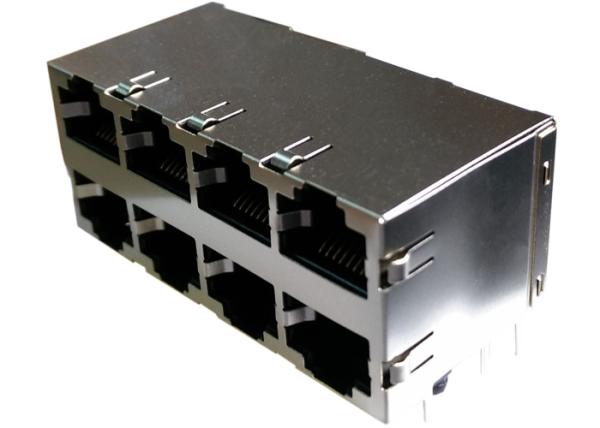

DA4T001A3 / DA4T103A2 Stacked Rj45 2x4 Integrated Gigabit Ethernet Modular Jack

10 / 100 / 1000 Base-T RJ45 2x4 Integrated Magnetics Connector

1.Complies with requirement of IEEE 802.3ab standards.
2.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
3.Size same as RJ-45 connector to save PCB board space.
4.Reduced EMI radiation to improve EMI performance.
5.Design for 10/100/1000 BASE transmission over UTP-5 cable.
6.Compliance with ROHS requirements.
7.Operating temperature range: 0 to +70 . ℃ ℃
8.Storage temperature range: -25 to +85 .

Designing Model: 【DA4T001A3 / DA4T103A2】

Mass Production Model:【LPJXXXXNL】

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

DA4T001A3 / DA4T103A2

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
