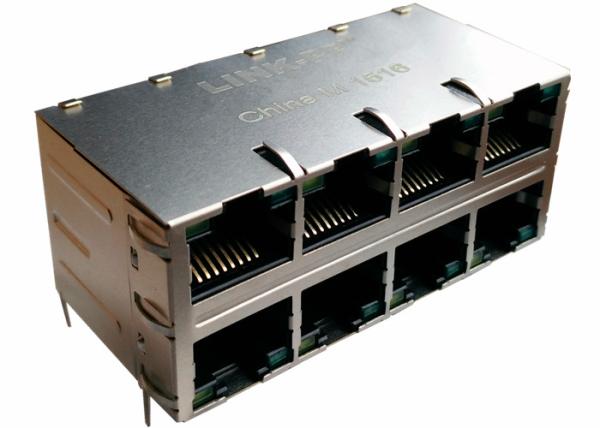

2-1840269-7 POE RJ45 Connector 2x4 MAG45 Modular Jack Gigabit Circuit 1840269
2-1840269-7 POE RJ45 Connector 2x4 MAG45 Modular Jack Gigabit Circuit 1840269
2-1840269-7 POE RJ45 Connector 2x4 MAG45 Modular Jack Gigabit Circuit 1840269
2-1840269-7 POE RJ45 Connector 2x4 MAG45 Modular Jack Gigabit Circuit 1840269
Specifications
Brand Name :
LINK-PP
Model Number :
2-1840269-7 / 1840269
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
XX pcs/ tray,XX tray /carton/37*30*30 cm,XX pcs/ carton
Obsolete :
2-1840269-7 / 1840269
Instead :
LPJG47011AENL
Connector Type :
Gigabit POE+ Rj45 2x4 Connectors
Applications :
10/100/1000 Base-T POE Plus
Mounting Type :
Through Hole
Orientation :
90～ Angle (Right)
Termination :
Solder
Shielding :
Shielded, EMI Finger
Description
2-1840269-7 POE RJ45 Connector 2x4 MAG45 Gigabit Circuit 1840269
2-1840269-7​​​ Datasheet
Stacked RJ45 1840269
Gigabit 2x4 Lan Port
Rj45 Stacked POE+
♦ Designing Model: 【2-1840269-7】【1840269】
♦ POE+ Rj45 2x4 Connectors
♦ 2x4 Rj45 Gigabit POE+ Magjack 2-1840269-7​ PDF
♦ 2x4 Rj45 Lan Ports 1000Base-T POE+ 1840269 PDF
♦ Rj45 2x4 POE Plus Magnetics / 2x Rj45 / Rj45 2x4 POE+ 1840269 pinout
♦ Rj45 Stacked POE+ Connectors 2-1840269-7 pinout
♦ 10/100/1000 gigabit POE+ ethernet / magnetics Rj45 2-1840269-7​ Price
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3at requirement.
♦ Mass Production New Model:【LPJG47011AENL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
Description
2-1840269-7 POE RJ45 Connector 2x4 MAG45 Modular Jack Gigabit Circuit 1840269
1. Product Type Features:
1) Product Type : Connector Female
2) Jack Type = RJ45 To Ethernet
3) Profile = Standard Or Low Profile
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 2 x 6
3. Electrical Characteristics:
1) Shielded Or Unshielded
4. Termination Related Features:
1) EMI Finger - With Or Without
2) Termination Method = Soldering
5. Body Related Features:
1) Port Configuration = Single/Multi/Stacked
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Solder capable to 245°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green
2) Right LED Color (Position #2) = Yellow
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN
12.Power Over Ethernet: With Or Without

2-1840269-7 / 1840269 Pinout Application
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Advantage
Certificated by SGS , ISO9001:2008 , UL ,REACH and CE
OEM for Tyco
Cooperate with Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp , etc
Passing the Fluke Tester Entirely
High Quality, Shortest Delivery Time
Competitive Price, Perfect Packing and Best After-Sale Service
Get 80% Off From DHL, UPS ,Fedex,TNT
