Specifications
Brand Name :
LINK-PP
Model Number :
59G-75YDD3LZ2NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specifications :
59G-75YDD3LZ2NL
P/N :
LPJG4852E90NL
Application :
10/100Base-T
Mounting :
DIP / Side Entry
LEDs :
Optional
Samples :
Free
Description

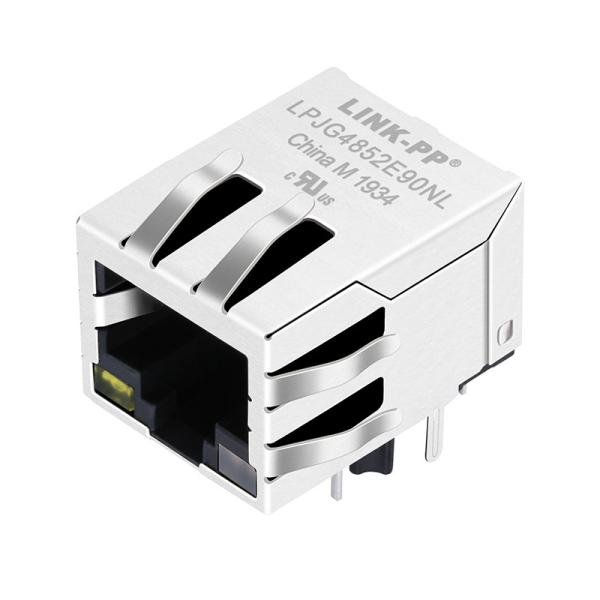

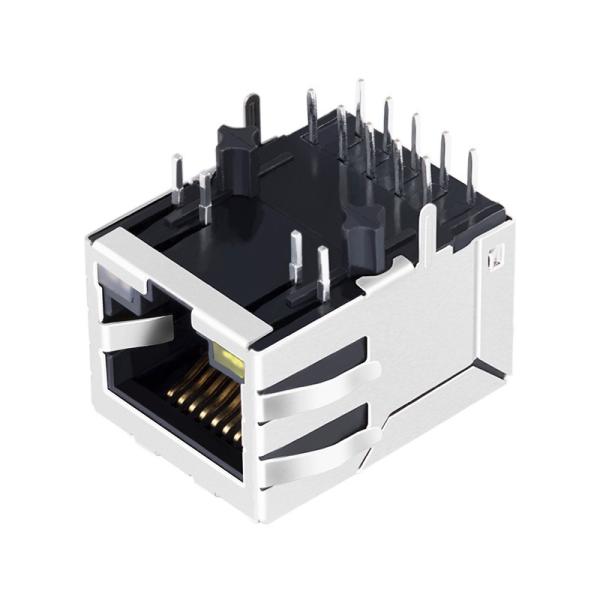

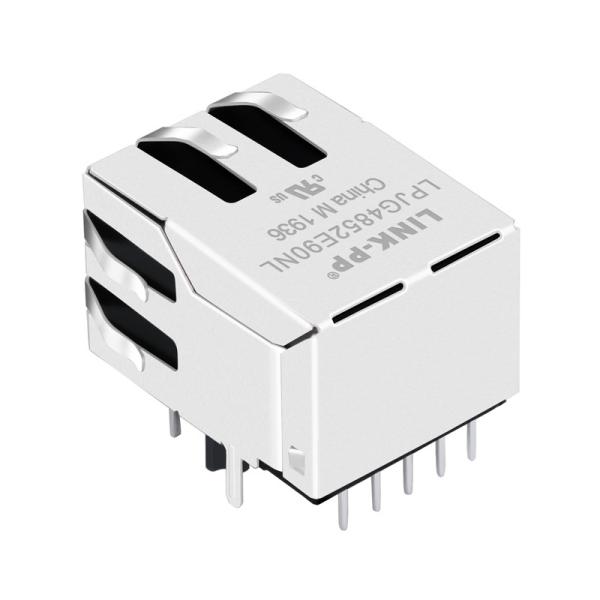

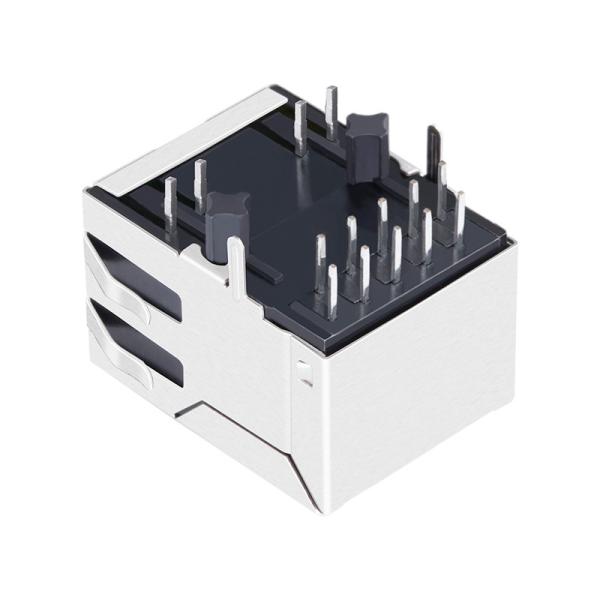

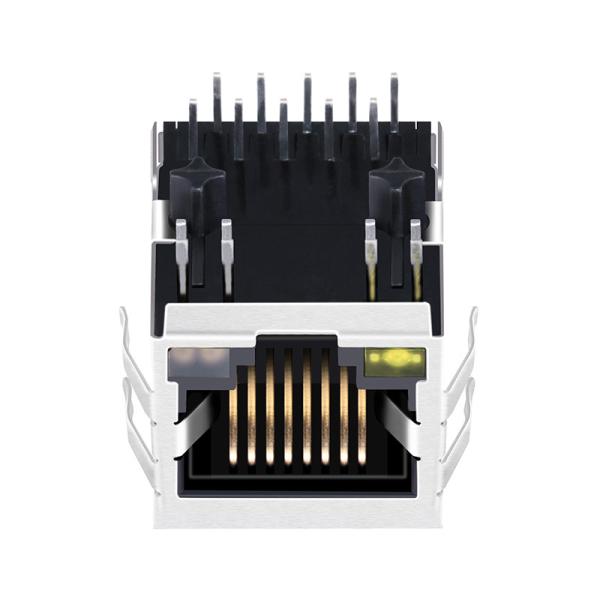

59G-75YDD3LZ2NL | LPJG4852E90NL RJ45 Modular Jack Giga Bit Ethernet
  1. RJ45 for 10/100/1000TX Port LPJG4852E90NL
  2. 59G-75YDD3LZ2NL Compatible
  3. Ethernet socket with LEDs
1X1-Tab-up RJ45 Magjack with/without leds, meeting IEEE 802.3ab
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN
Application

Computer
-Desktop/Notebook/Server/Storage Networking A282Solutions
Consumer
-DVD Player / STBS / Connected TV Networking Solutions
Communication
-Telecom and Wireless Netwooring
