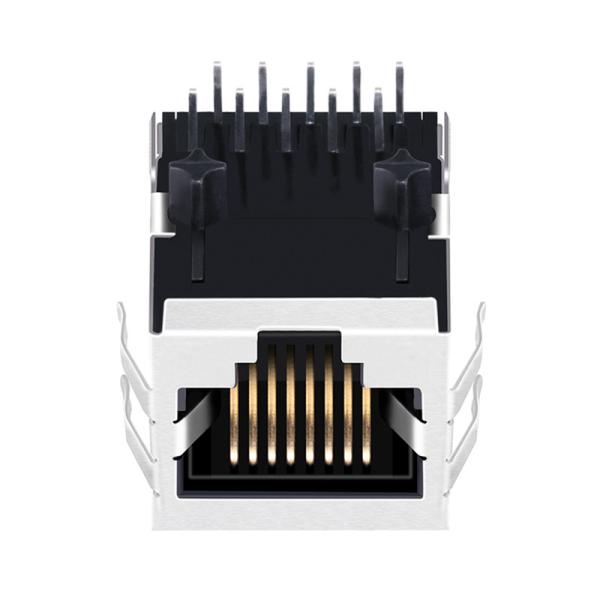

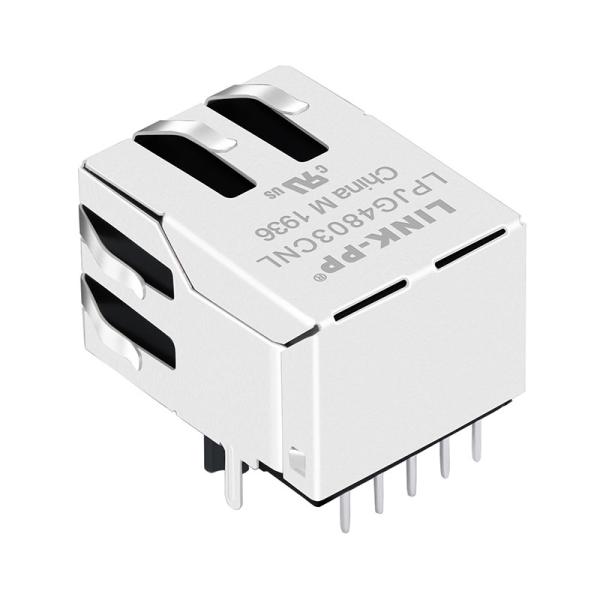

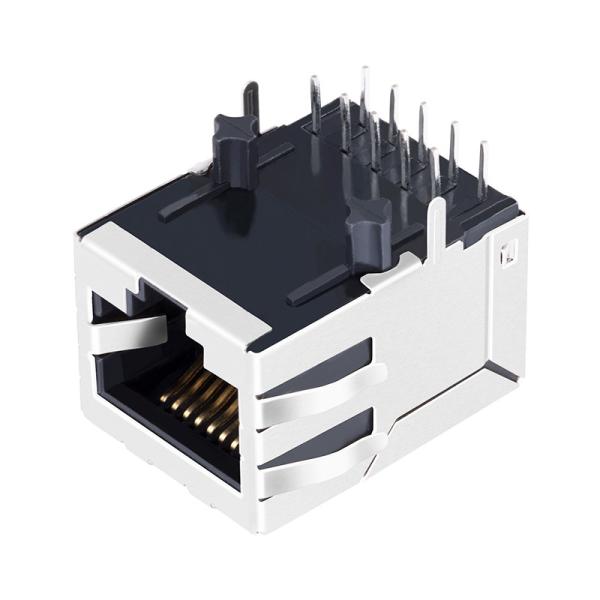

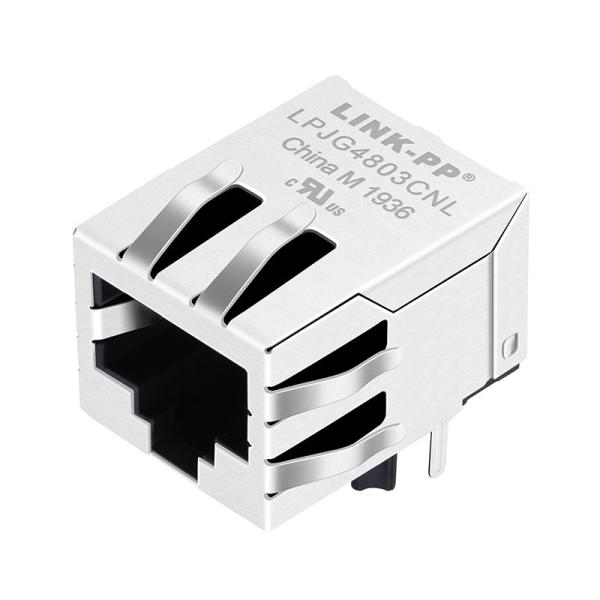

P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
Specifications
Brand Name :
LINK-PP
Model Number :
P65-P0Z-1AK9-B
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
P65-P0Z-1AK9-B
Cross Part :
LPJG4803CNL
Original Munafactuer :
LINK-PP
Lan :
10/100/1000Mbps
Termination :
Solder
Samples :
Available Free
Description

P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL

  • Ethernet 10/100/1000 Base-T SIngle Port Rj45 Tab-Down Applications
  • 1x Gigabit Ethernet (10/100/1000)
  • Specification P65-P0Z-1AK9-B
  • Cross LPJG4803CNL
Electrical Specifications @ 25℃
1.Turns Ratio:
TX=1:1 RX=1:1
2.INDUCTANCE(@100KHz,100mV,8mA DC BIAS):
J1-J2;J3-J6;J4-J5;J7-J8: 350uH min
3.Insertion Loss:
1～100MHz:-1.0dB Max
4.Return Loss(dB Min.load 100Ω):
1～30MHz:-18 30～60MHz:-16
60～80MHz:-12 80～100MHz:-10
5.Crosstalk:
1～100MHz:-30dB Min
6.Common Mode Rejection:
1～100MHz:-30dB Min
7.Isolation Voltage:1500Vrms
8.Operating Temperature Range: -40℃～+85℃.		 P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL

P65-P0Z-1AK9-B Gigabit Ethernet Jack , 10/100/1000 Full Duplex LPJG4803CNL
