7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
Specifications
Brand Name :
LINK-PP
Model Number :
7498011122AR
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.08-$1.79
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
Reel packing style
Spec :
7498011122AR
P.N Analogue :
LPJ19911ADNL
Mounting :
SMT
Application :
10/100Base-T Interface
Termination :
Solder
LEDs :
Optional
Samples :
Free
Mount Style :
DIP / Side Entry
Description
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
1. RJ-45 needs to be matched FCC standard.
2. Complies with requirement of IEEE802.3u standards.

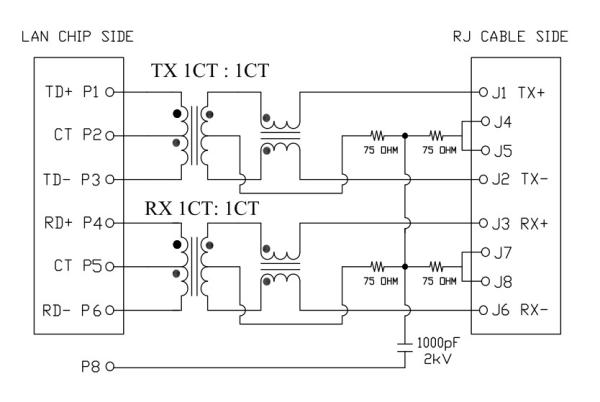

3. RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4. Size same as RJ-45 connector to save PCB board space.
5. Reduced EMI radiation to improve EMI performance.
6. Design for 10/100 BASE transmission over UTP-5 cable.
7. Compliance with ROHS requirements.
8. Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃
9. Storage temperature range: -25℃ to +85℃.
10. Designing Model: 7498011122AR
11. Mass Production Model:LPJ19911ADNL Pin to Pin
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
7498011122AR Sunk PCB RJ45 Low-Profile Magnetic Jack 10/100Base-T W/LEDs
Description
LAN-Übertrager WE-RJ45LAN 10/100BaseT
SMT 1x1 Port RJ45 Magjack Connector with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab UP,RoHS
LINK-PP Part Number LPJ19911ADNL
WE Part Number 7498011122AR
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Yellow/Green
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle Surface Mount
PCB Retaining Post T POST
Package Height (mm) 11.35
Package Length (mm) 21.50
Package Width (mm) 15.50
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Shielded
Speed 10/100 BASE-T
Temperature -40 TO + 85
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
