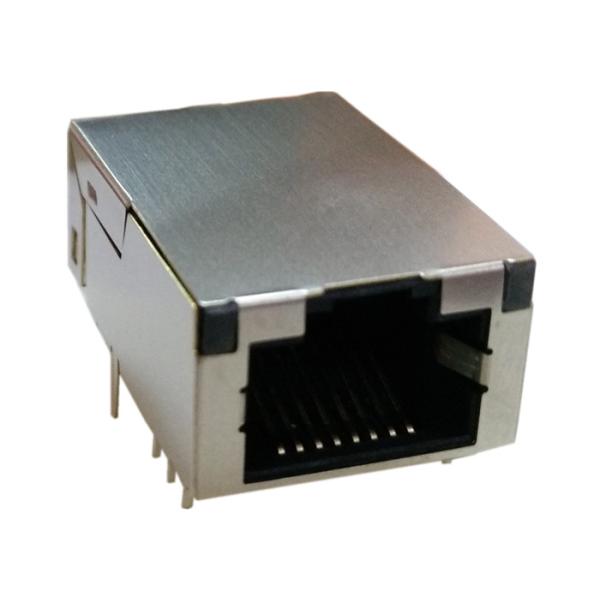

J0G-0003NL Low-Profile RJ45 Jack 100 / 1000Base-T Integrated Magnetics Connector
J0G-0003NL Low-Profile RJ45 Jack 100 / 1000Base-T Integrated Magnetics Connector
J0G-0003NL Low-Profile RJ45 Jack 100 / 1000Base-T Integrated Magnetics Connector
J0G-0003NL Low-Profile RJ45 Jack 100 / 1000Base-T Integrated Magnetics Connector
Specifications
Brand Name :
LINK-PP
Model Number :
J0G-0003NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
$0.08-$1.79
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
2800K-PCS/Month
Delivery Time :
Stock
Packaging Details :
60pcs/tray,or Reel Package
part Number :
J0G-0003NL
Made In China :
SM-LPJK7003B98NL
Original Munafactuer :
LINK-PP
Interface :
100/1000 Base-T
Termination :
Solder
Sample :
Available
Description
J0G-0003NL Low-Profile RJ45 Jack 100 / 1000Base-T Integrated Magnetics Connector
Quick Details
Pulse Jack Low Profile 1x1 Tab-Up
1.RoHS “NL” peak solder rating 260°C
2.Low height and small footprint to minimize board space
3.Meets IEEE 802.3 specification
4.350µH minimum OCL with 8mA bias current
5.High performance for maximum EMI suppression
6.Designing Model: 【J0G-0003NL】
7.Mass Production Model:【LPJK7003B98NL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
Description
Pulse Jack Low Profile 1x1 Tab-Up , Meeting IEEE 802.3/ af/at
Ethernet RJ45 Connector with 1000 Base-T Integrated Magnetics,Orange&Green/Yellow LED,Tab Up,RoHS
LINK-PP Part Number LPJK7003A98NL
Application-Lan ETHERNET(NON PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option ORANGE&GREEN/YELLOW
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 11.30
Package Length (mm) 24.14
Package Width (mm) 17.78
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time

Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
Product tags

rj45 integrated magnetics connector

,

magnetic rj45 connector

,

rj45 connector with magnetics
