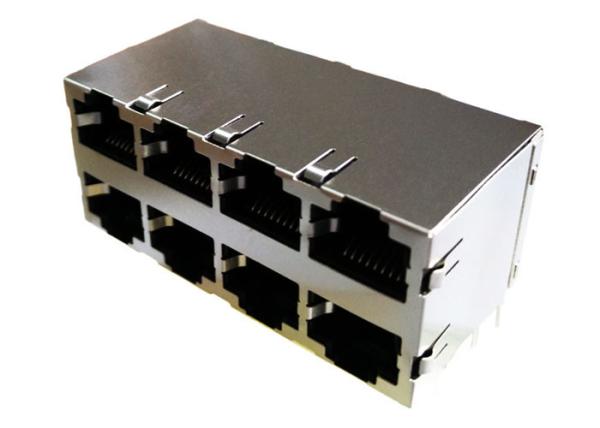

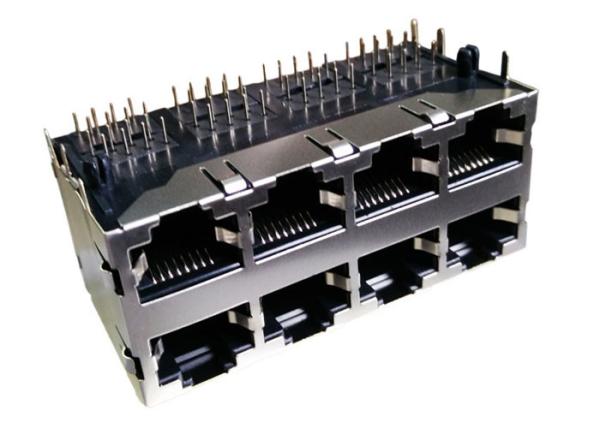

LPJE328CNL 2x4 Port Side Entry PCB Jack Filter Connector Module Cross Ref LPJE108XAHNL
LPJE328CNL 2x4 Port Side Entry PCB Jack Filter Connector Module Cross Ref LPJE108XAHNL
LPJE328CNL 2x4 Port Side Entry PCB Jack Filter Connector Module Cross Ref LPJE108XAHNL
LPJE328CNL 2x4 Port Side Entry PCB Jack Filter Connector Module Cross Ref LPJE108XAHNL
Specifications
Brand Name :
LINK-PP
Model Number :
SS-73100-073
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/60K
Price :
$0.11-$24
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Spec :
SS-73100-073
Port :
2x4 Female Rj45
Magnetics :
WITHOUT
LED :
Without Leds
Mounting :
Side Entry (Right Angle)
Cross Ref :
LPJE108XAHNL
Description
RJSAE538408 Stacked RJ45 2x4 Without Magnetics Connector LPJE108XAHNL

Category
Category RJ45 connector -PCB Socket 8P8C (DIP)
Filter Without
Entry Angle 90° Angle
LED No
Color - Resin Black
Electrical
Current - Maximum per Contact 1.50A
Voltage - Maximum 125V
Contact Resistance 30 mΩ Max
Insulation Resistance 500 MΩ Min
Withstanding Voltage 1000V AC r.m.s
Temperature Range operating -40ºC~+85ºC
Material and Plating
Material-Metal Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Gold
Material - Resin PBT UL94V-0

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

LPJE328CNL 2x4 Port Side Entry PCB Jack Filter Connector Module Cross Ref LPJE108XAHNL

LPJE328CNL 2x4 Port Side Entry PCB Jack Filter Connector Module Cross Ref LPJE108XAHNL

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service
