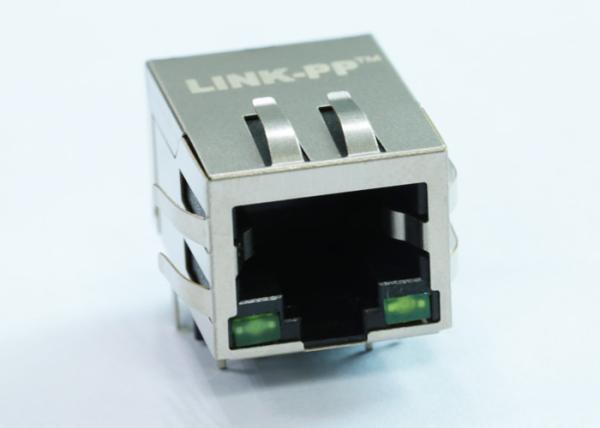

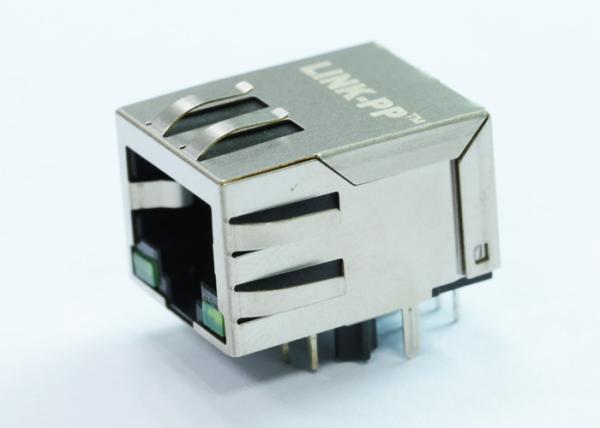

ARJM11A3-811-KK-EW4 / ARJM11A3-811-KK-EW4 RJ45 MAGJACK 1PORT 5G BASE-T
ARJM11A3-811-KK-EW4 / ARJM11A3-811-KK-EW4 RJ45 MAGJACK 1PORT 5G BASE-T
ARJM11A3-811-KK-EW4 / ARJM11A3-811-KK-EW4 RJ45 MAGJACK 1PORT 5G BASE-T
ARJM11A3-811-KK-EW4 / ARJM11A3-811-KK-EW4 RJ45 MAGJACK 1PORT 5G BASE-T
Specifications
Brand Name :
LINK-PP
Model Number :
ARJM11A3-811-KK-EW4 / ARJM11A3-811-KK-EW4
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.5-$3.5
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Specification :
ARJM11A3-811-KK-EW4
Ethernet :
1PORT 5G BASE-T
Mounting :
R/A Shield
Samples :
Available
File :
PDF/3D/ISG/Stp/Step/Datasheet
Description
ARJM11A3-811-KK-EW4 / ARJM11A3-811-KK-EW4 RJ45 MAGJACK 1PORT 5G BASE-T
1x1 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green&Orange/Green&Orange LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM11A1-811-KK-EW4 / ARJM11A3-811-KK-EW4
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green&Orange/Green&Orange LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

ARJM11A3-811-KK-EW4 / ARJM11A3-811-KK-EW4 RJ45 MAGJACK 1PORT 5G BASE-T

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

ARJM11A3-811-KK-EW4 / ARJM11A3-811-KK-EW4 RJ45 MAGJACK 1PORT 5G BASE-T

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
