ARJM12A2-805-AB-EW2 Multi-port RJ45 1x2 Connector 2.5G Base - T Magnetic
ARJM12A2-805-AB-EW2 Multi-port RJ45 1x2 Connector 2.5G Base - T Magnetic
ARJM12A2-805-AB-EW2 Multi-port RJ45 1x2 Connector 2.5G Base - T Magnetic
ARJM12A2-805-AB-EW2 Multi-port RJ45 1x2 Connector 2.5G Base - T Magnetic
ARJM12A2-805-AB-EW2 Multi-port RJ45 1x2 Connector 2.5G Base - T Magnetic
ARJM12A2-805-AB-EW2 Multi-port RJ45 1x2 Connector 2.5G Base - T Magnetic
Specifications
Brand Name :
LINK-PP
Model Number :
ARJM12A2-805-AB-EW2
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.6-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
400K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Series :
ARJM12 Series
Tab :
Down
Speed :
2.5G base -t
Ports :
1X2 Multi-port
Left/Right LED Color :
Green/Yellow
Free Samples :
Available 3 pcs
Integrated Magnetics :
2.5G Base-T Magnetics Module
Dimensions :
31.0 x 21.3 x 13.6 mm
Description

ARJM12 Series 1x2 RJ45 Multi Port Connector with 2.5G Base-T Magnetics Module

Features of 2.5GBase-T RJ45 Connector

  • IEEE 802.3 compliant and UL certified
  • High-performance integrated magnetics for EMI suppression
  • Suitable for CAT5 and CAT6 UTP cabling
  • RoHS peak wave solder temperature rating 265°C
  • Extended operating temperature -40 to 85°C option
  • RoHS/RoHS II Compliant
  • MSL level: 1

Tab Down 2.5G RJ45 Jack Connector with Green/Yellow LED

Abracon LLC Part Number

ARJM12A2-805-AB-EW2

Application-Lan

ETHERNET(NoN PoE)

Mounting

Through Hole

Shielding

YES

LED Option

Green/Yellow LEDs

Latch

TAB Down

Number of Ports

1X2

Terminal Pitch

1.27mm

PCB Mount Angle

SIDE ENTRY

Body Orientation

Right Angle

Package Height (Inches)

0.54

Package Height (mm)

13.6

Package Length (Inches)

1.22

Package Length (mm)

31.0

Package Width (Inches)

0.84

Package Width (mm)

21.3

Pin Type

THT SOLDER

RoHS Compliant

YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION

Category

Cat 5/Cat 6

Shield EMI Tabs

With

Speed

2.5G Base-T

Temperature

-40°C ~ 85°C

Turns Ratio RX

1CT:1CT

Turns Ratio TX

1CT:1C

Applications:

  1. Multiport 10/100/1G/5G Base-T LAN
  2. Network Interface Cards
  3. High-Density Data Center Switches
  4. NAS /Expander storage
  5. Data Center Servers, Routers
  6. Media converters

ARJM12 Series RJ45 Multi-port Connector Materials:


1. Housing:
Material: PBT, UL94V-0
Standard Color: Black
2. Contact Pin:
Material: Phosphor Bronze
Plating (1): Nickel
Plating (2): 100%Sn
3. Insert:
Material: PBT, UL94V-0
Contact Material: Phosphor Bronze
Plating (1): Nickel
Plating (2): Gold, 6u”
4. LED:
Material: Diffused Epoxy Lens, 0.5x0.5mm
Carbon Steel wireframe leads
5. Metal Shell:
Material: Brass
Plating (1): Nickel

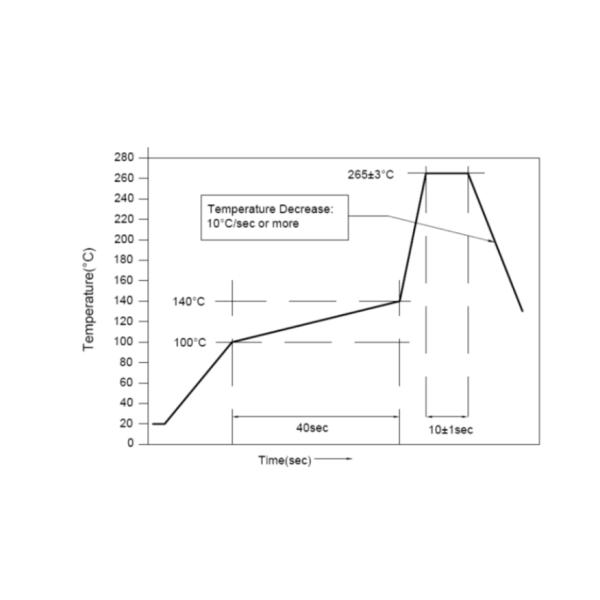

ARJM12A2-805-AB-EW2 Wave Profile:

ARJM12A2-805-AB-EW2 Multi-port RJ45 1x2 Connector 2.5G Base - T Magnetic
