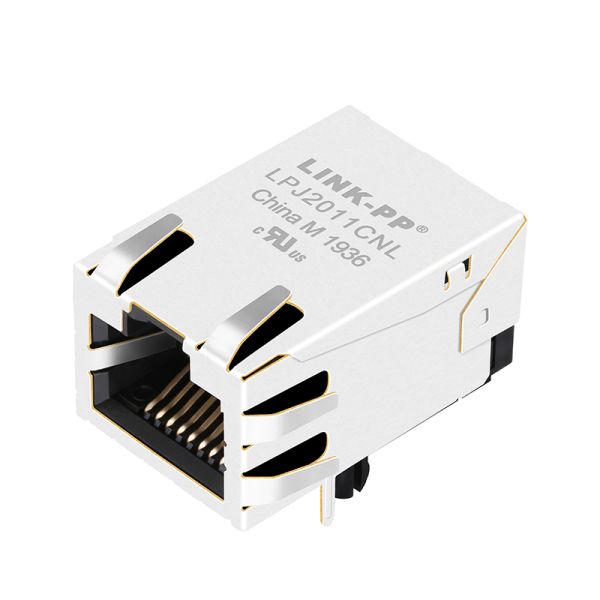

08B1-1X1T-06-F 100 Base-T 1x1 Port RJ45 Magnetic Jack Tab Up Without Led LPJ2011CNL

Belfuse 08B1-1X1T-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T 8 Pin Amp RJ45 Jacks for Industrial PC and The Handheld Device (1x1 Port, Tab Up, Without Led)
LINK-PP Part Number LPJ2011CNL
Part Number 08B1-1X1T-06-F
Application-Lan ETHERNET(NON PoE)
Part Status Active
Connector Type Jack
Number of Positions/Contacts 6p8c (RJ45, Ethernet)
Cores per Port 4
Speed 100 Base-T
LED Option NO Led
Latch Tab Up
Number of Ports 1X1 Port
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches/mm) 0.522/13.25
Package Length (Inches/mm) 1.008/25.60
Package Width (Inches/mm) 0.661/16.80
Search YES
Shield EMI Tabs With
Temperature 0℃ TO 70℃
Contact Mating Area Plating GOLD 6u"/15u"/30u"
AutomDX YES
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

You may be interesting in below considerate supports:
Datasheet Request by email to
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

The LPJ2011CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Network Card, The Handheld Device and Game Controller.

08B1-1X1T-06-F 100 Base-T 1x1 Port RJ45 Magnetic Jack Tab Up Without Led LPJ2011CNL

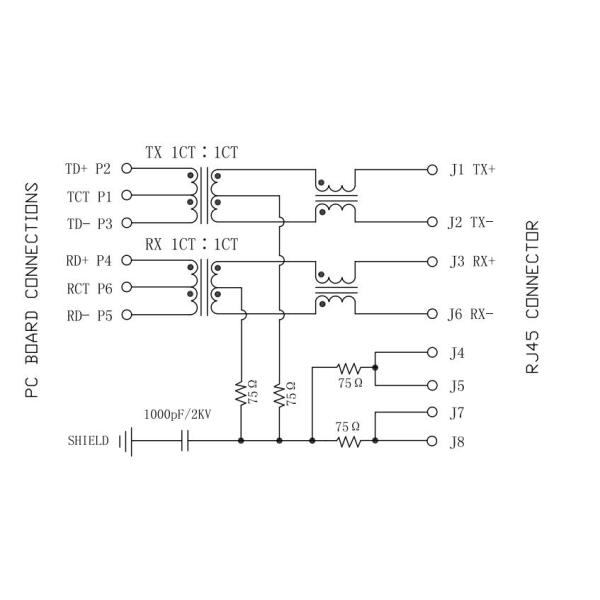

08B1-1X1T-06-F 100 Base-T 1x1 Port RJ45 Magnetic Jack Circuit Diagram:

08B1-1X1T-06-F 100 Base-T 1x1 Port RJ45 Magnetic Jack Tab Up Without Led LPJ2011CNL


08B1-1X1T-06-F 1x1 Port RJ45 Magnetic Connector Electrical Specifications @25"C
1. Turns Ratio(士2%):
TX=1CT: 1CT
RX=1CT: 1CT
2. Inductance (100KHz/0.1V@8mA) :
350uH MIN
3. Insertion Loss:
0. 1-100MHz:-1.0dB MAX
4. Return Loss(dB MIN) :
1- 30MHz:-20
30-60MHz:-15
60-80MHz:-10
5. Crosstalk(dB MIN) :
1- 30MHz:-20
30-60MHz:-15
60- 100MHz:- 30
6. Common To Common Mode Re ject ion:
1-1 00MHz: -30dB MIN .
7. Hi-Pot: 1500VAC FOR 60 SECONDS MIN
8. Operating Temperature Range: 0°C~70°C.

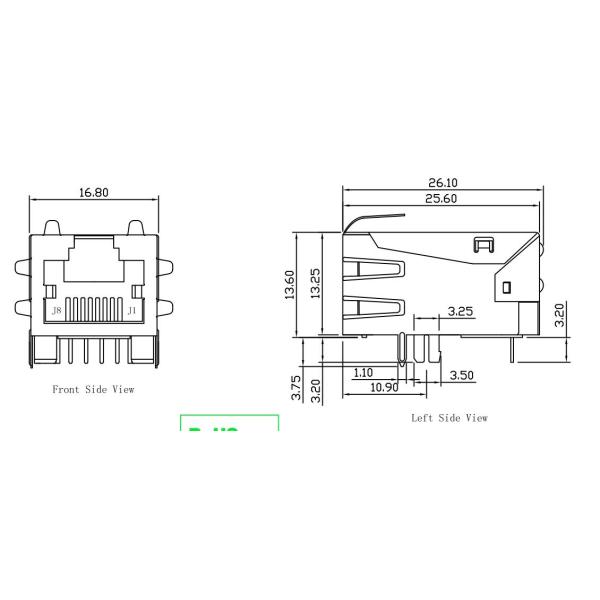

08B1-1X1T-06-F 100 Base-T 1x1 Port RJ45 Magnetic Jack Tab Up Without Led Mechanical Specification:
08B1-1X1T-06-F 100 Base-T 1x1 Port RJ45 Magnetic Jack Tab Up Without Led LPJ2011CNL

08B1-1X1T-06-F Description:

  • 08B1-1X1T-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack
  • 08B1-1X1T-06-F Single Port RJ45 MagJack
  • 08B1-1X1T-06-F 100 Base-T RJ45 Connector Without Led
  • 08B1-1X1T-06-F 100 Base-T Rj45 Female Connector

08B1-1X1T-06-F RJ45 Connector Package:

08B1-1X1T-06-F 100 Base-T 1x1 Port RJ45 Magnetic Jack Tab Up Without Led LPJ2011CNL

Connector Network Applications:

Networking : Router , Server , Switches , Network Firewall , SMPS.

Consumer : Digital Camera , Video Recorder , Media Player , Game Controller , TV.

Security : Alarm , Smart Camera , Monitoring System , Intercom , Entrance Guard System.

Telecom : Set-top Box , Smart Home , Smart Meters , Satellite , New Energy , Solar Inverter.

Medical : Surgical Equipment , Patient Care , The Handheld Device , Operation Generator , Home Dialysis , Machine.

Industrial l/O : Industrial PC , Embedded Main Board , Ethernet Control , Automation , Fieldbus System , 1/0 Controller.
