Specifications
Brand Name :
LINK-PP
Model Number :
LPJG16305AQNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000
Price :
OEM Price
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Original :
RT7-174AAK1A
Equivalent :
LPJG16305AQNL
Operating Temperature :
0°C ~ 70°C
Samples: :
Free Available
File :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle :
More than 20Years
Description

RT7-174AAK1A 100/1000 Base-T Single Port RJ45 Female Connector Tab Up Yellow/Green&Orange Led

RT7-174AAK1A Compatible LINK-PP LPJG16305AQNL 100/1000 Base-T RJ45 Female Connector Socket for Industrial PC and Fieldbus System (Single Port, Tab Up, Green&Yellow/Green Led)
LINK-PP Part Number LPJG16305AQNL
UDE Part Number RT7-174AAK1A
Application-Lan ETHERNET(NoN PoE)
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Speed 10/100/1000 Base-T
LED Option Yellow/Green&Orange LEDs
Latch TAB UP
Number of Ports 1X1 Port
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.628
Package Width (mm) 15.95
Search YES
Shield EMI Tabs With
Temperature 0 TO + 70
AutomDX YES
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

RT7-174AAK1A 100/1000 Base-T Single Port RJ45 Female Connector Tab Up Yellow/Green&Orange Led

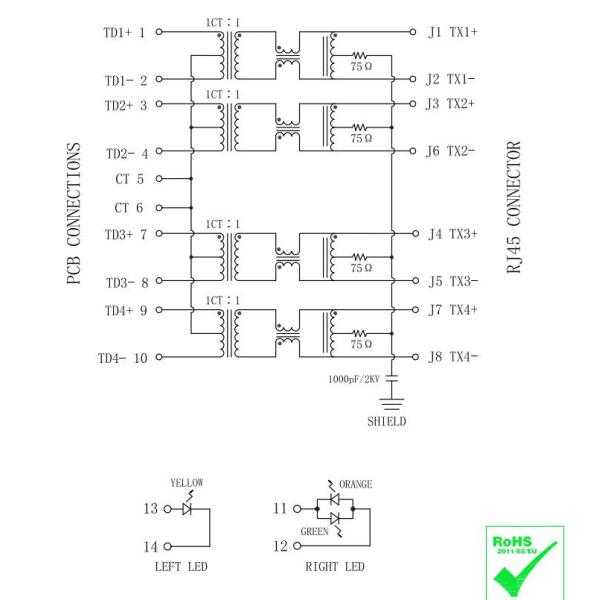

RT7-174AAK1A 100/1000 Base-T Single Port RJ45 Female Connector Circuit Diagram:

RT7-174AAK1A 100/1000 Base-T Single Port RJ45 Female Connector Tab Up Yellow/Green&Orange Led


RT7-174AAK1A 1000 Base-T Single Port RJ45 Jack Mechanical Specification:
RT7-174AAK1A 100/1000 Base-T Single Port RJ45 Female Connector Tab Up Yellow/Green&Orange Led

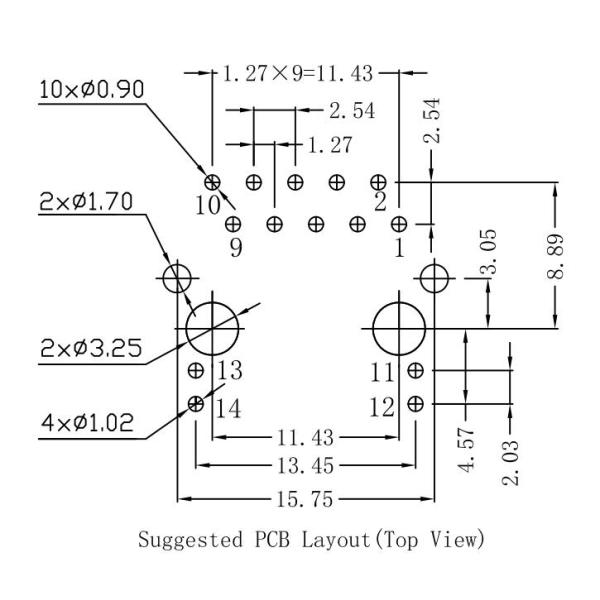

RT7-174AAK1A 100/1000 Base-T 1 Port RJ45 Female Jack Recommended PCB Layout (Component Side)
RT7-174AAK1A 100/1000 Base-T Single Port RJ45 Female Connector Tab Up Yellow/Green&Orange Led


RT7-174AAK1A Description:

  • RT7-174AAK1A 1X1 Port RJ45 Jack
  • RT7-174AAK1A Single Port RJ45 Female Jack
  • RT7-174AAK1A 100/1000 Base-T RJ45 Female Connector
  • RT7-174AAK1A Tab UP Rj45 Network Connector
