HX7137NL 10G BASE-T Single Port 30PIN Lan TRANSFORMER Modules
HX7137NL 10G BASE-T Single Port 30PIN Lan TRANSFORMER Modules
HX7137NL 10G BASE-T Single Port 30PIN Lan TRANSFORMER Modules
HX7137NL 10G BASE-T Single Port 30PIN Lan TRANSFORMER Modules
Specifications
Brand Name :
LINK-PP
Model Number :
LPXXXXXX
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Original :
HX7137NL
Equivalent :
LPxxxxxx
Speed :
10G Base-T
Transformer Type :
Isolation and Data Interface
Temperature :
-40C TO +85C
File :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Description
HX7137NL 10G BASE-T Single port 30PIN Lan TRANSFORMER Modules

LINK-PP Part Number LPxxxxxx
Other Part Number HX7137NL
Speed 10G BASE-T
Number of Ports Single
PIN number 30
Cores per Port 10
POE RATING NON-POE
Package SMT
Temperature -40C TO +85C
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
APPLICATION-LAN ETHERNET TRANSFORMER
Package Height (Inches) 7.24
Package Length (Inches) 17.73
Package Width (Inches) 15.24
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly


HX7137NL 10G BASE-T Single port 30PIN Lan TRANSFORMER Modules Mechanical Specification:

HX7137NL 10G BASE-T Single Port 30PIN Lan TRANSFORMER Modules

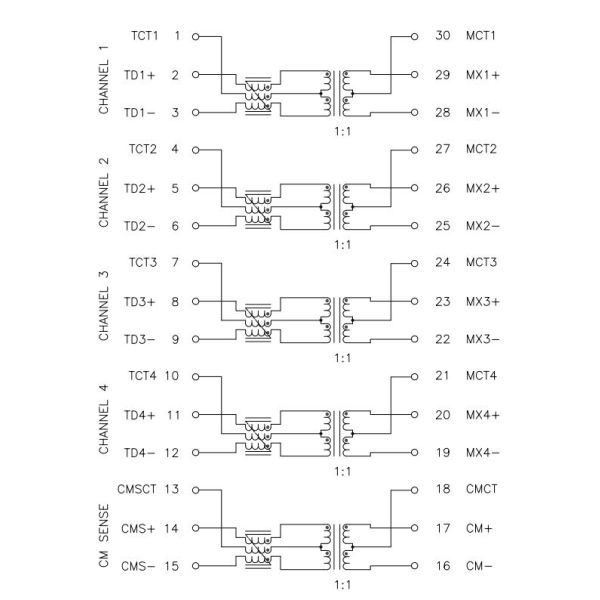

HX7137NL 10G BASE-T Single port Lan TRANSFORMER Modules Electrical Schematic:

HX7137NL 10G BASE-T Single Port 30PIN Lan TRANSFORMER Modules

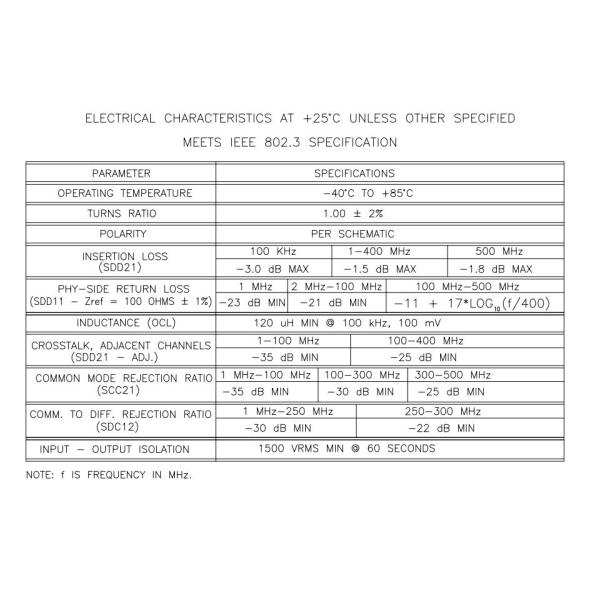

HX7137NL 10G BASE-T Single port 30PIN Lan TRANSFORMER Modules Electrical Specifications:

HX7137NL 10G BASE-T Single Port 30PIN Lan TRANSFORMER Modules
​

HX7137NL Similar Part Number :

HX6400NLT HX7137NL HX7137NLT
HXU6200NLT HX6098NLT HX6101FNL


HX7137NL Description:
1.HX7137NL 10GBASE-T SMD Telecom Transformer
2.HX7137NL NON POE SMD ETHERNET TRANSFORMER
3.HX7137NL Single Port SMT Lan Transformer
