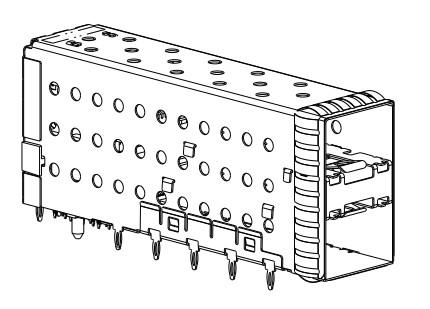

TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs
TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs
TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs
TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs
TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs
TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs
Specifications
Brand Name :
LINK-PP
Certification :
ISO 9001,ISO 14001,UL,SGS,REACH168
Place of Origin :
Guangdong,China
MOQ :
10/100/25K
Price :
$3-$11
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
350K/Month
Delivery Time :
Stock
Packaging Details :
20/Tray
Model Number :
1-2007492-8
Cage Type :
1-2007492-8 Stacked SFP+ Cage Assembly
Form Factor :
SFP+
Part Status :
Active
Sealable :
No
Number of Positions :
40
Number of Ports :
2 x 1
Data Rate (Max)  :
16 Gb/s
Operating Temperature Range :
-55 – 105 °C [-67 – 221 °F]
Description

1-2007492-8 SFP+ Cage Assembly with Integrated Connector

Material Specifications for 1-2007492-8 SFP+ Cage

♦ Contact Mating Area Plating Material: Gold or Gold Flash over Palladium Nickel, providing conductivity and corrosion resistance.

♦​ Tail Plating Material: Tin for good solderability.

♦​ Cage Material: Nickel Silver for its strength and durability.

♦​ UL Flammability Rating: UL 94V-0 Rated meets safety standards.

♦​ EMI Spring: Made from copper alloy, providing efficient electromagnetic interference (EMI) shielding.

♦​ Housing: Black LCP (Liquid Crystal Polymer) for high-temperature resistance.

♦​ Chicklet: Black LCP, also UL 94V-0 rated.

♦​ Light Pipe: Clear polycarbonate, enabling efficient light transmission for visual indicators.

♦​ Insert Black LCP, UL 94V-0 rated.

♦​ Contacts: Copper alloy for electrical conductivity and reliability.

Part Number

1-2007492-8

Manufacturer

LINK-PP

Part Status

Active

Connector Type

SFP+

Connector Style

Receptacle with Cage, Ganged (2x1)

Number of Ports

2X1 port

Number of Positions 

40

Included Lightpipe

No
Heat Sink Compatible No

PCB Mounting Style

Through Hole - Press-Fit

Data Rate (Max) (Gb/s)

16

Features

EMI Shielded

Operating Temperature Range

-55 – 105 °C

PCB Thickness (Recommended)

1.5 mm [ .059 in ]

Tail Length

3 mm [ .118 in ]

Cage Material

Nickel Silver

EMI Containment Feature Type

External Springs

Circuit Application

Signal
UL Flammability Rating UL 94V-0

TE 1-2007492-8 SFP+ 2x1 Cage Details:
TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs

TE 1-2007492-8 SFP+ 2x1 Cage With Integrated Connector External Springs

1-2007492-8 Similar Part Number :

2007625-1

2170790-3

4-2170808-2

1-2007492-8

2198325-2

2198339-2

1-2007562-5

2170745-3

2143330-1

2170745-1

2227670-2

2308171-8

2227671-3

2149730-4

2227249-3
