TE 2170707-1 QSFP28 1x6 Cage With Heat Sink 28 Gb/S EMI Springs
TE 2170707-1 QSFP28 1x6 Cage With Heat Sink 28 Gb/S EMI Springs
TE 2170707-1 QSFP28 1x6 Cage With Heat Sink 28 Gb/S EMI Springs
TE 2170707-1 QSFP28 1x6 Cage With Heat Sink 28 Gb/S EMI Springs
Specifications
Brand Name :
LINK-PP
Certification :
ISO 9001,ISO 14001,UL,SGS,REACH168
Place of Origin :
Guangdong,China
MOQ :
10/100/25K
Price :
$0.11-$35
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
350K/Month
Delivery Time :
Stock
Packaging Details :
20/Tray
Original :
2170707-1
Connector Type :
QSFP28
Part Status :
Active
Connector Style :
Cage, Ganged (1 x 6) with Heat Sink
File :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle :
More Than 20Years
Description

TE 2170707-1 QSFP28 1x6 Cage With Heat Sink 28 Gb/s EMI Springs

2170707-1,QSFP28,Cage Assembly, 1 x 6, Internal/External EMI Springs, Standard, Data Rate (Max) 28 Gb/s, 6 Port, Pin, zQSFP+/QSFP28
Part Number 2170707-1
Manufacturer LINK-PP
Part Status Active
Connector Type QSFP28
Connector Style Cage, Ganged (1 x 6) with Heat Sink
Number of Ports 1X2 port
Number of Rear EONs per Port Column  1
Heat Sink Height  4.2 mm [ .165 in ]
Included Lightpipe Yes
PCB Mounting Style Through Hole - Press-Fit
Data Rate (Max) (Gb/s) 28
Features EMI Shielded
Operating Temperature Range -55 – 105 °C
PCB Thickness (Recommended) 1.57 mm [ .062 in ]
Tail Length 2.05 mm [ .081 in ]
Cage Material Nickel Silver
EMI Containment Feature Type Internal/External EMI Springs
Circuit Application Signal


You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

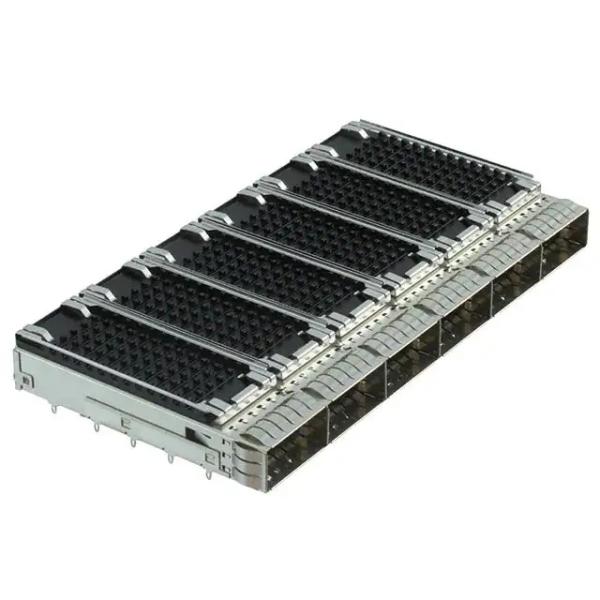

TE 2170707-1 QSFP28 1x6 Cage With Heat Sink :
TE 2170707-1 QSFP28 1x6 Cage With Heat Sink 28 Gb/S EMI Springs

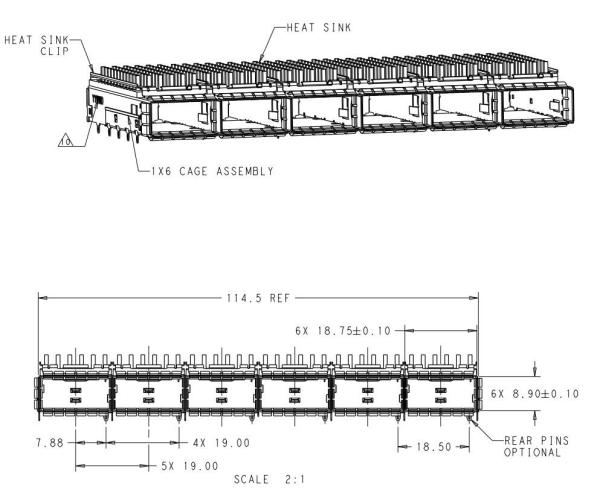

2170707-1 QSFP28 1x6 Cage With Heat Sink Dimension:

TE 2170707-1 QSFP28 1x6 Cage With Heat Sink 28 Gb/S EMI Springs

2170707-1 Similar Part Number :

4-2170747-4 2170747-2 2198230-3
2170808-6 4-2170747-5 2057183-2
2198373-2 2057042-3 1-2007394-7
2227103-2 2-2170808-3 2227666-3
2214593-2 2170738-3 2170707-1

What Is QSFP28 ?
QSFP28 (quad small form-factor pluggable 28) is designed for 100G applications.
It offers four channels of high-speed differential signals with data rates ranging from
25 Gbps up to potentially 40 Gbps, and finally, meet 100 Gbps Ethernet (4×25 Gbps)
and 100 Gbps 4X InfiniBand Enhanced Data Rate (EDR) requirements. Note that,
QSFP28 can do 4x25G and 2x50G breakout connection, or 1x100G depending on
the transceiver type that is used.
