Specifications
Brand Name :
LINK-PP
Model Number :
J0011D11NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock

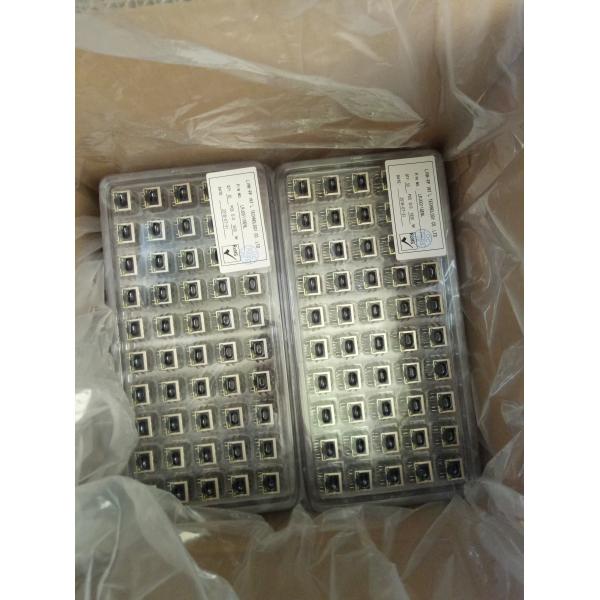

Packaging Details :
50pcs/tray,1200pcs/carton
Part Number :
LPJ0011INL
speed :
10/100 Base-T
OperatingTemperature :
0°c~70°c
LED :
without led
Archivi Disponibil :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle :
More than 20Years
Description
J0011D11NL 100 base-t 8p8c Tab Down Without Led Shielded Female Socket Industrial RJ45 Ethernet Connector

Single Port RJ45 Female Connector with 10/100 Base-T Integrated Magnetics, Without LED, Tab Down, RoHS
LINK-PP Part Number: LPJ0011INL Other Part Number J0011D11NL
Part Status Active Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 10/100 Base-T
Latch Down Cores per Port 4
Orientation 90° Angle (Right) PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without LED Option Without Leds
PCB FR4 PCB Retaining Post T POST
Package Height (Inches/mm) 0.524/13.30 Package Length (Inches/mm) 0.837/21.25
Package Width (Inches/mm) 0.627/15.93 Temperature 0℃ TO 70℃
Bst Circuit Yes AutomDX YES
Diodes No Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT Configuration RX/TX T,C

J0011D11NL Rj45 Female Connector 100 Base-T 8p8c Tab Down Industrial RJ45 Ethernet ConnectorJ0011D11NL Rj45 Female Connector 100 Base-T 8p8c Tab Down Industrial RJ45 Ethernet ConnectorJ0011D11NL Rj45 Female Connector 100 Base-T 8p8c Tab Down Industrial RJ45 Ethernet ConnectorJ0011D11NL Rj45 Female Connector 100 Base-T 8p8c Tab Down Industrial RJ45 Ethernet Connector

J0011D11NL Rj45 Female Connector 100 Base-T 8p8c Tab Down Industrial RJ45 Ethernet ConnectorJ0011D11NL Rj45 Female Connector 100 Base-T 8p8c Tab Down Industrial RJ45 Ethernet Connector
