Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger
Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger
Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger
Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger
Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger
Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger
Specifications
Brand Name :
LINK-PP
Model Number :
LPJE101BHNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
6000K/month
Delivery Time :
Stock
Packaging Details :
Tray Package: Carton size 32*30*31cm , G.W/carton 8.5kg , Qty/carton 1200pcs , SPQ 50pcs
Part Number: :
LPJE101BHNL
OEM & ODM: :
LINK-PP
LED Option :
Green/Yellow
Samples: :
Free Available
File: :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle: :
More Than 20Years
Description

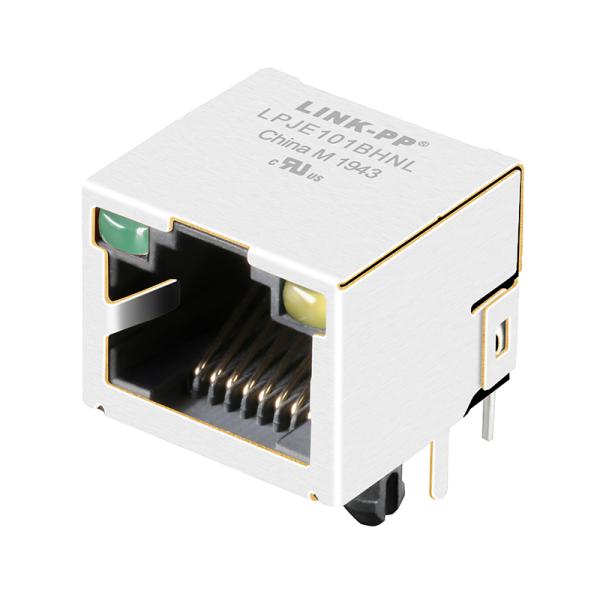

Without Magnetics LPJE101BHNL Tab Up Green/Yellow LED Single Port Rj45 Pcb Mount Jack

LINK-PP LPJE101BHNL RJ45 Modular Jack without Integrated Magnetics for router and Switch(Single Port,Tab Up ,Yellow/Green LED)

The LPJE101BHNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Industrial PC, router and Switch.


LINK-PP Part Number LPJE101BHNL Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger
Application-Lan ETHERNET(NoN PoE)
Bst Circuit YES
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Temperature -40 TO + 85℃
Diodes NO DIODES
LED Option Green/Yellow
Shielding Shielded, EMI Finger
Mounting Type Through Hole Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger
Orientation 90° Angle (Right)
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST

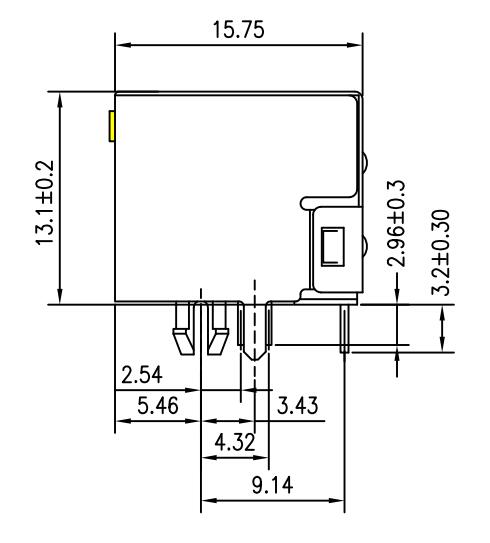

Package Height (Inches) 0.516
Package Height (mm) 13.10

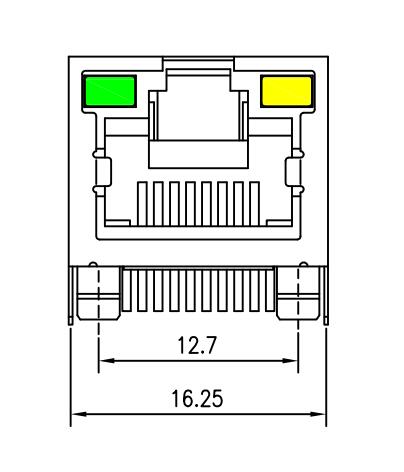

Package Length (Inches) 0.640
Package Length (mm) 16.25
Package Width (Inches) 0.620
Package Width (mm) 15.75
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Without Magnetics LPJE101BHNL Tab Up Green/Yellow LED Single Port Rj45 Pcb Mount Jack​:

Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger

LINK-PP INT'L TECHNOLOGY CO., LIMITED

is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad.

Established in 1997, we have around 2600 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.

Tab Up Rj45 Pcb Mount Jack LPJE101BHNL LED No Diodes EMI Finger

Delivery Time:

- Material Preparation Time: 3 days (or inventory)

- Production & Assembly Time 9 days

- Testing & Packaging Time: 3 days

- Total Delivery Time: 15 days in 50,000pcs for safe delivery lead time.

- The faster delivery could be negotiable.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
