0875-1D1T-P2 Single Port Rj45 Integrated Connector 10/100 Base-T Yellow/Green led
0875-1D1T-P2 Single Port Rj45 Integrated Connector 10/100 Base-T Yellow/Green led
0875-1D1T-P2 Single Port Rj45 Integrated Connector 10/100 Base-T Yellow/Green led
0875-1D1T-P2 Single Port Rj45 Integrated Connector 10/100 Base-T Yellow/Green led
Specifications
Brand Name :
LINK-PP
Model Number :
LPJxxxxxx
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000
Price :
OEM Price
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Original :
0875-1D1T-P2
Equivalent :
LPJxxxxxx
Ethernet Aplly :
100 Base-T
Samples :
Free Available
File :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle :
More than 20Years
Description

0875-1D1T-P2 Single Port Rj45 Integrated Connector 10/100 Base-T Yellow/Green led


The 0875-1D1T-P2 supports speed 10/100 Base-T, It can be used to support application, such as Smart Home, Monitoring System, hub and switches.
LINK-PP Part Number LPJxxxxxx
Part Number 0875-1D1T-P2
Part Status Active
Speed 10/100 BASE-T
Connector Type Jack
Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Cores per Port 4
LED Option Yellow/Green
Latch Tab Up
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs WITH
Operating Temperature 0 to 70ºC


You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

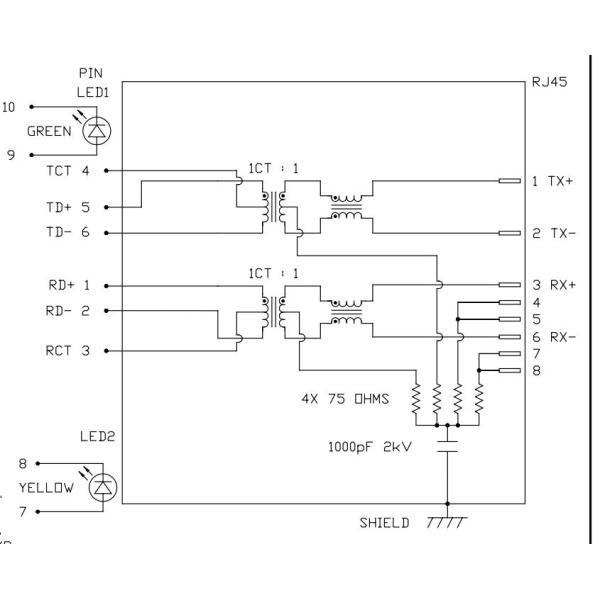

0875-1D1T-P2 100 Base-T Single Port Integrated RJ45 Connector Circuit diagram :
0875-1D1T-P2 Single Port Rj45 Integrated Connector 10/100 Base-T Yellow/Green led




0875-1D1T-P2 Single Port Rj45 Integrated ConnectorPackage:
0875-1D1T-P2 Single Port Rj45 Integrated Connector 10/100 Base-T Yellow/Green led

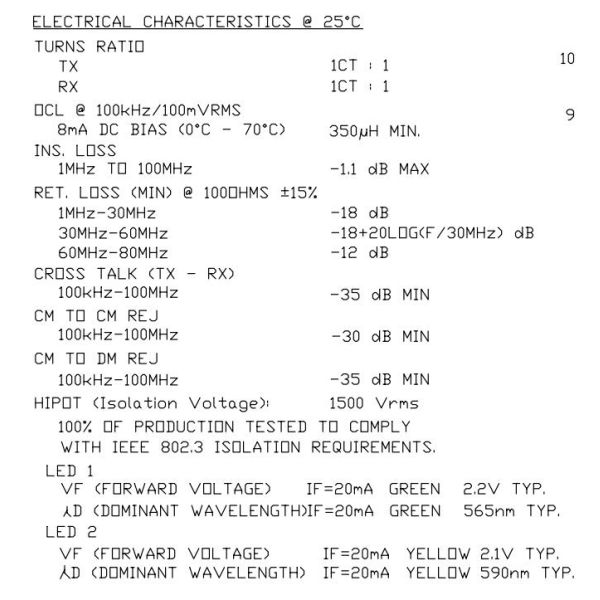

0875-1D1T-P2 Electrical Specifications @ 25 °C:


0875-1D1T-P2 Single Port Rj45 Integrated Connector 10/100 Base-T Yellow/Green led

0875-1D1T-P2 Description:


1.0875-1D1T-P2 Single Port RJ45 Jack
2.0875-1D1T-P2 100 Base-T RJ45 Connector
3.0875-1D1T-P2 1 Port RJ45 MagJack
4.0875-1D1T-P2 Tab UP RJ45 Female Connector
