Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-5224SYGNL
Price :
Please contact us to get the latest price.
Product Name :
RJ45 Modular Jack
Gender :
rj45 receptacle
Application :
fiber optic,ip camera ,dvr,dsl,modem,wifi etc
Feature :
Shielded RJ45 network port withou transformer
OEM/ODM :
yes
Type :
Multi pin rj45 magjack
Description

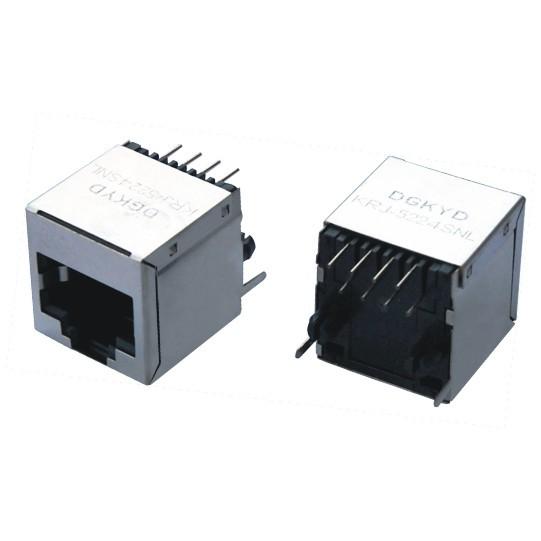

Shielded Internet Set-top Box RJ45 Modular Jack Without Transformer 180°

Tap UP 5224S 1x1 RJ45 Connectors KRJ-5224SNL

180° top entry shielded RJ45 LAN Jack without transformer for Internet TV Box

Descrition:

  • 1X1 Single port RJ45 Modular jack without transformer
  • 180 degree tap-up RJ45 connctor w/o led
  • Insertion Force:2.2KG.F.max
  • Retention Strength;7.7KG.Fmin between jack and plug
  • Durabbilith:600mating cycles min
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant(GP)
  • Length:16.65mm
  • LEDS:NO
  • EMI fingers:NO
  • Usage:KRJ-5224SNL

Material:

  1. Housing :ABS RESIN(UL94V-0),PBT(UL94V-0),PA66(UL94V-0),PA46(UL94V-0)optional
  2. Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel,0.35mm thickness phosphor bronze alloy selective gold plating over nickel

3.Shield:0.20~0.25mm thickness brass with tin plated

4.Gold Plating :3u inch ,6u inch,15u inch,30u inch,50u inch
