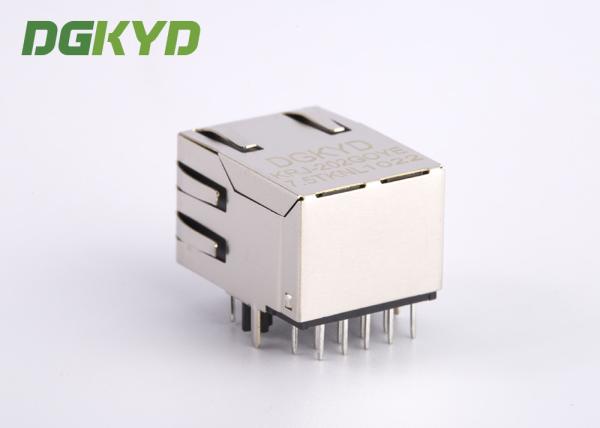

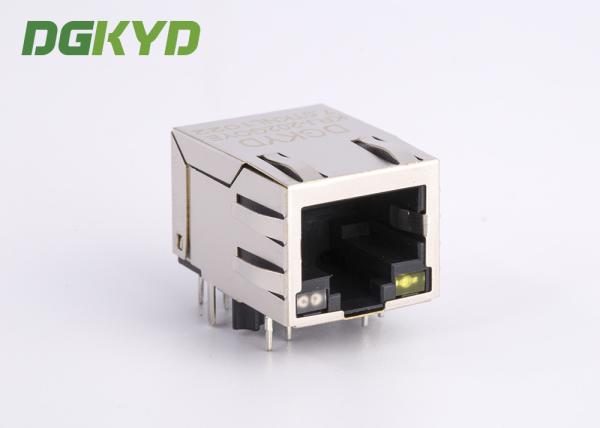

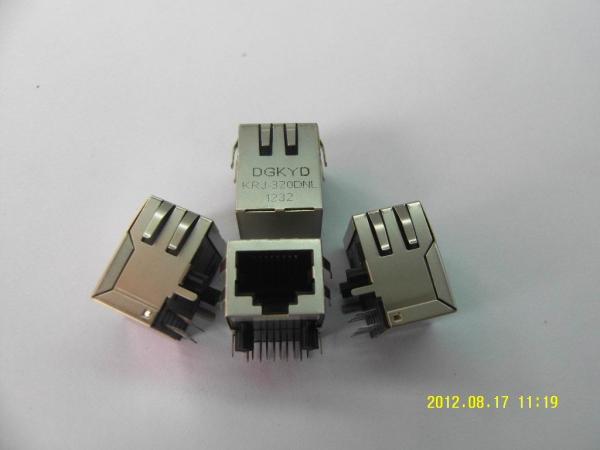

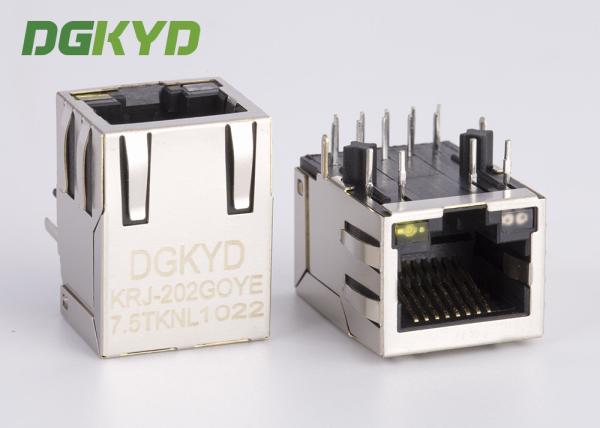

Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-202GOYE7.5TKNL
Price :
Please contact us to get the latest price.
Application :
fiber optic,ip camera ,dvr,dsl,modem,wifi etc
Feature :
cat6 RJ45 network port
OEM/ODM :
yes
Type :
Multi pin rj45 magjack
Gender :
rj45 receptacle
Product Name :
RJ45 Modular Jack
Description

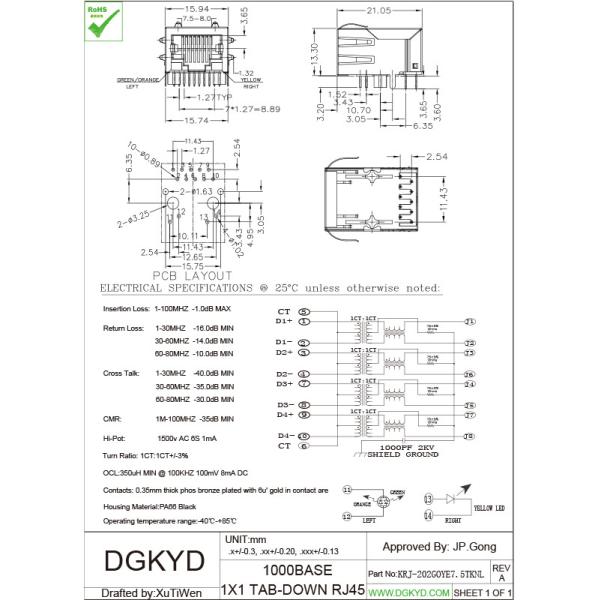

Fiber Optic Transceivers RJ45 Magnetics single Port Modular Jack HR911130A

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION GO/Y
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

  • 1X1 &1x2 & 1x4 Tab Down
  • Designed to meet IEEE802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
  • -40C to +85C operating temperature
  • Suitable for CAT 3, CAT 5 UTP or higher
  • Supports all major PHY manufactures

Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity

Fiber Optic Transceivers RJ45 Magnetics connector gigabit network HR911130A OEM
