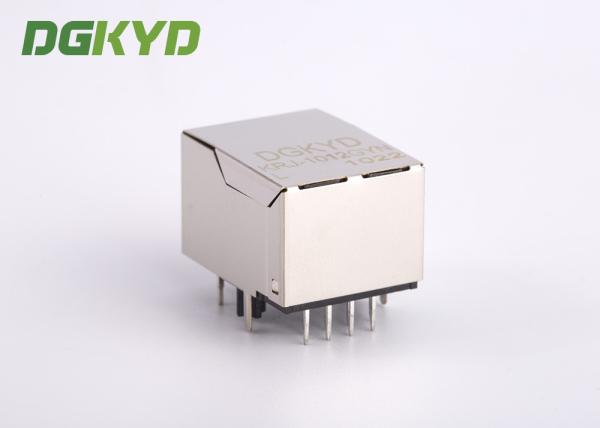

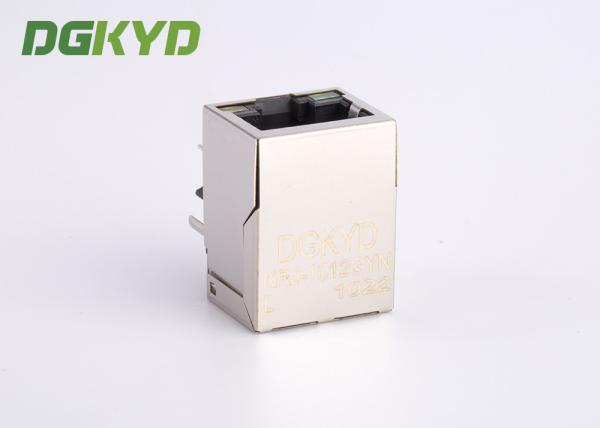

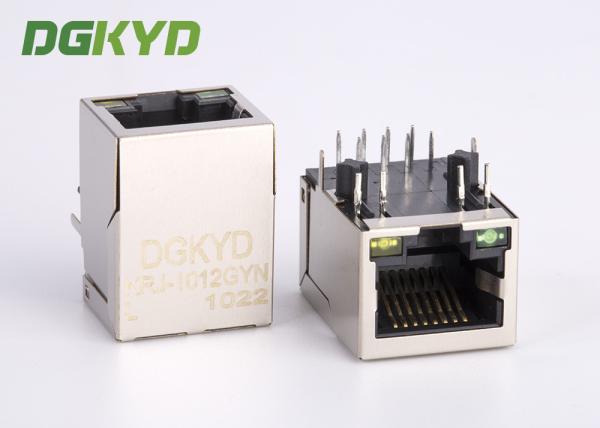

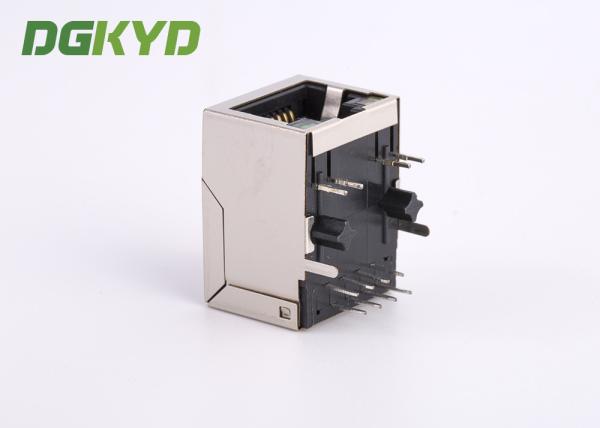

1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-1012GYNL
Price :
Please contact us to get the latest price.
Application :
fiber optic,ip camera ,dvr,dsl,modem,wifi etc
Feature :
Shielded RJ45 network port
OEM/ODM :
yes
Type :
Multi pin rj45 magjack
Gender :
rj45 receptacle
Product Name :
RJ45 Modular Jack
Description

Tab down rj 45 network jack , 10 / 100BASE 1 x 1 rj45 transformer connector

1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer1x1 Tab Down 10 / 100 BASE Cat5e RJ45 Jack With Internal Transformer

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, 0 defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,pls do not hesitate to contact us by email or TradeManager. We will asap reply with in 24h.
