Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-060SHYGNL
Price :
Please contact us to get the latest price.
Application :
fiber optic,ip camera ,dvr,dsl,modem,wifi etc
Feature :
Shielded RJ45 network port
OEM/ODM :
yes
Type :
Multi pin rj45 magjack
Gender :
rj45 receptacle
Product Name :
RJ45 Modular Jack
Description

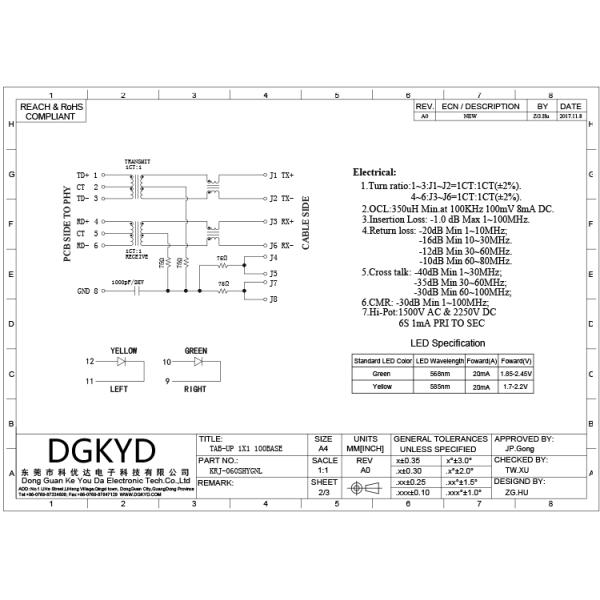

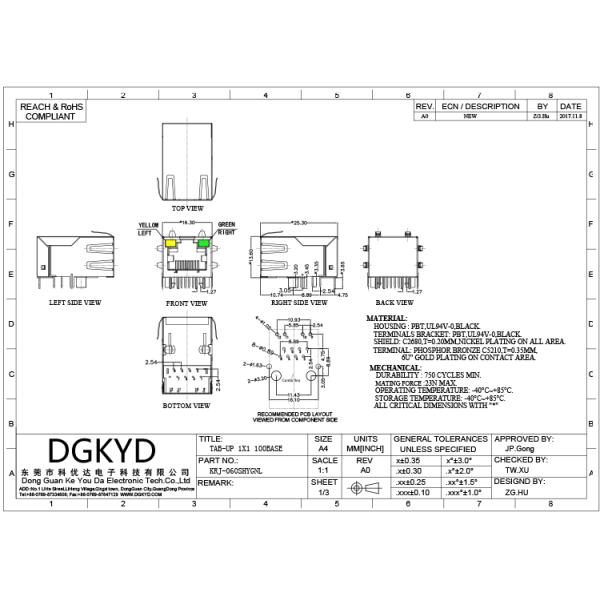

100BASE Magnetic RJ45 Jack Module with LEDS , W/O EMI Fingers

Single Port Tab Up 100 BASE Magnetic RJ45 Jack Module With LEDSSingle Port Tab Up 100 BASE Magnetic RJ45 Jack Module With LEDSSingle Port Tab Up 100 BASE Magnetic RJ45 Jack Module With LEDS

ENVIRONMENTAL

Operating Temperature Range: -40℃~+85℃

Storage Temperature Range: -40℃~+85℃

SOLDER ABILITY

Recommended Wave Soldering Temperature: 260℃

Recommended PCB Thickness: 1.6mm

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
