Specifications
Model Number :
DGKYD211B114CD2A4D
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Price :
Please contact us to get the latest price.
Application :
fiber optic,ip camera ,dvr,dsl,modem,wifi etc
Feature :
Shielded RJ45 network port
OEM/ODM :
yes
Type :
Multi pin rj45 magjack
Gender :
rj45 receptacle
Product Name :
RJ45 Modular Jack
Description

WIFI PCB RJ45 Modular Jack with magnetics , LEDs and EMI Fingers OEM Degree

WIFI PCB RJ45 Modular Jack With Magnetics , LEDs And EMI Fingers OEM 90 DegreeWIFI PCB RJ45 Modular Jack With Magnetics , LEDs And EMI Fingers OEM 90 DegreeWIFI PCB RJ45 Modular Jack With Magnetics , LEDs And EMI Fingers OEM 90 Degree

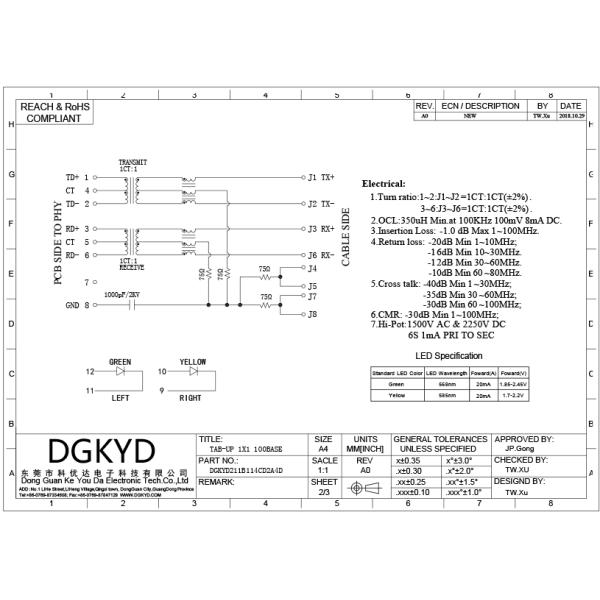

ELECTRICAL

Current Rating: 1.5A per pin

Voltage Rating: 125V DC per pin

Contact Resistance: 50mΩ

Insulation Resistance: 1000MΩ

Dielectric Withstanding Voltage: 1000VAC

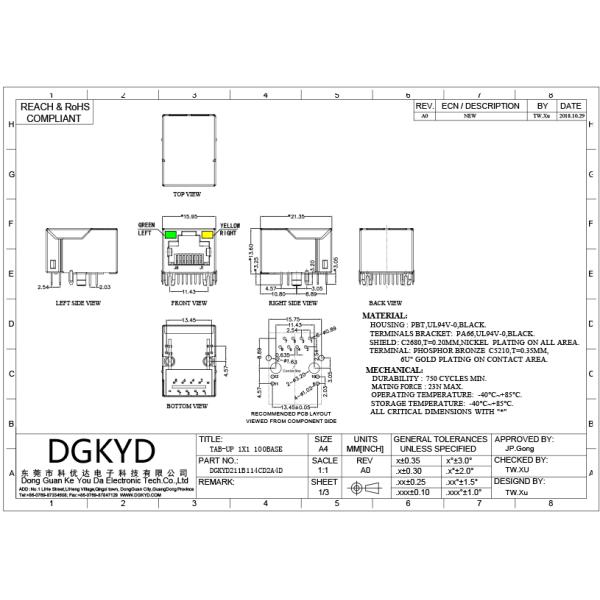

MECHANICAL

Durability: 750 Cycle

ENVIRONMENTAL

Operating Temperature Range: -40℃~+85℃

Storage Temperature Range: -40℃~+85℃

SOLDER ABILITY

Recommended Wave Soldering Temperature: 260℃

Recommended PCB Thickness: 1.6mm

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
