Specifications
Place of Origin :
Dong Guan China
Brand Name :
DGKYD
Certification :
SGS、ISO9001-2008、ISO14001-2004
MOQ :
500PCS
Packaging Details :
120pieces/tray
Delivery Time :
Lead-time 5-10 days
Payment Terms :
T.T
Supply Ability :
40000pcs per day
Model Number :
KRJ-339EGOGENL
Price :
US $1.29-1.32 per piece Get latest price
Type :
RJ45 Female
Product Name :
RJ45 with Transformer
Housing :
Phenolic, PBT Black (UL94V-0)
Plastic core :
Glass fiber filler PBT Black(UL94V-0),ROHS
Shield RJ45 :
yes
No.Port :
RJ45 single port
Description

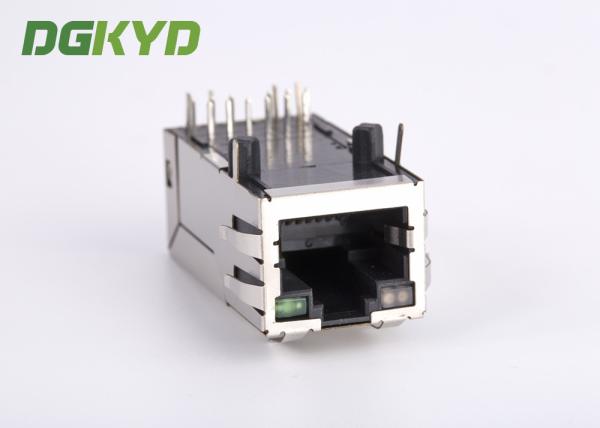

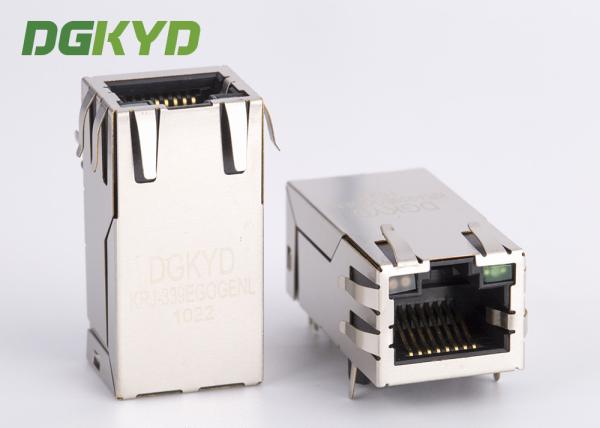

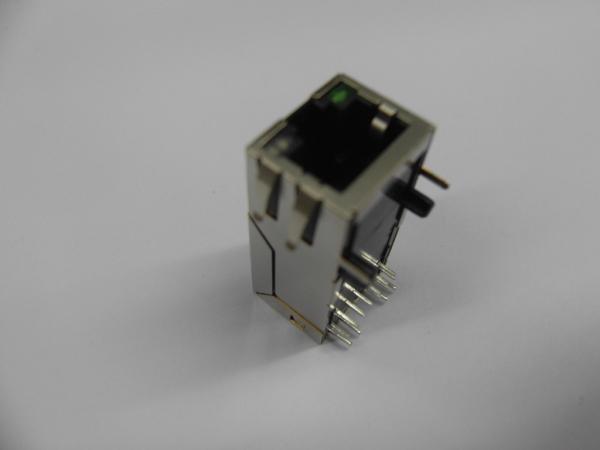

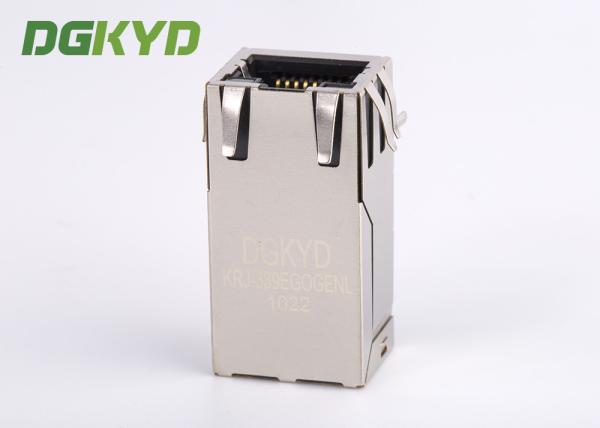

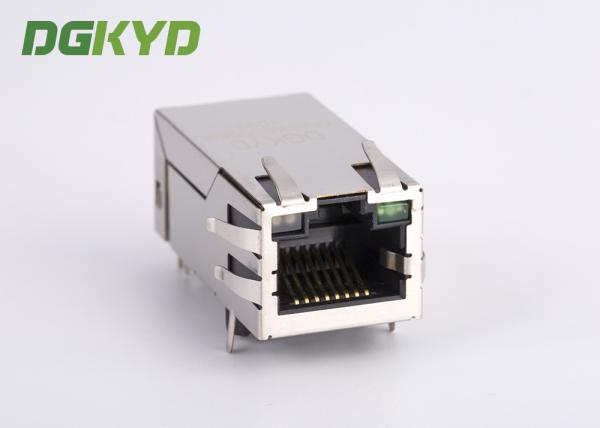

12 Pin Shielded 1000 BASE - TX Industrial Integrated magnetics RJ45 Connector, bi-color LED

12 Pin Shielded 1000 BASE - TX Industrial Integrated Magnetics RJ45 Connector, Bi-Color LED

Description:

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the

surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above

  • 10/100/1000Base-Tx RJ45 single port 1X1 with LEDS with Side Entry (Right Angle)
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • TYPE:Female
  • Number of positions:12
  • Number of contacts loaded:8
  • Shield:YES
  • EMI fingers:YES
  • Rohs compliant
  • Length:33.0mm
  • LEDS:YES
  • LEFT LED:Green/Yellow；RIGHT LED:Green

RJ45 Connectors w/o Magnetics

  • Multiple Platforms Available, 1x1, 1xN, 2xN, Vertical Mount, Offset, Low profile
  • CAT3 to CAT5e Connectors Available
  • With & Without LEDs
  • With & Without Shields
  • Extended Temperature -40°C to +85°C
  • THT, Pin-In-Paste & SMT Options
