PoE+ RJ45 Connector with internal isolation Transformer module for Industrial application
PoE+ RJ45 Connector with internal isolation Transformer module for Industrial application
PoE+ RJ45 Connector with internal isolation Transformer module for Industrial application
PoE+ RJ45 Connector with internal isolation Transformer module for Industrial application
PoE+ RJ45 Connector with internal isolation Transformer module for Industrial application
PoE+ RJ45 Connector with internal isolation Transformer module for Industrial application
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-9003NL
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Type :
RJ45 Female
Product Name :
RJ45 with Transformer
No.Port :
RJ45 single port
Shield RJ45 :
yes
Housing :
Phenolic, PBT Black (UL94V-0)
Plastic core :
Glass fiber filler PBT Black(UL94V-0),ROHS
Description

Lan RJ45 with Transformer / Industrial RJ45 Connector Moudle with LED

Part Number:KRJ-9003NL

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with POE
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

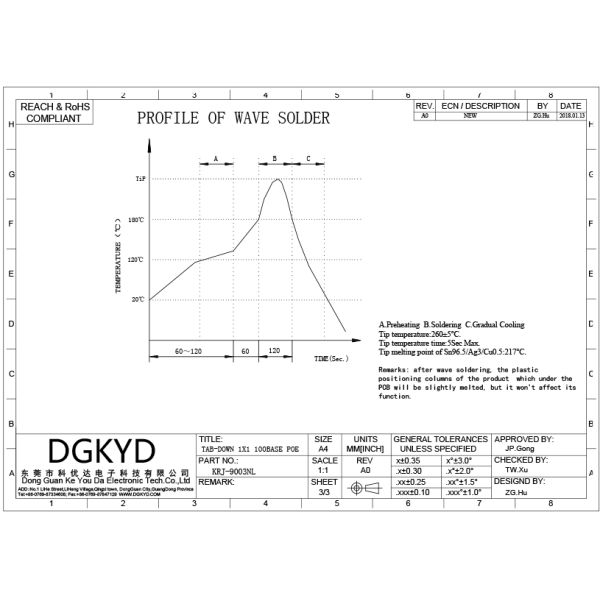

  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:YES
  • EMI fingers:YES
  • LEFT LED:Green,RIGHT LED:Yellow
  • Usage:KRJ-9003NL

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,

internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Mechanical Dimension:(UNIT:mm)

Part Number:KRJ-9003NL

PoE+ RJ45 Connector with internal isolation Transformer module for Industrial applicationPoE+ RJ45 Connector with internal isolation Transformer module for Industrial applicationPoE+ RJ45 Connector with internal isolation Transformer module for Industrial application

. XX Tolerance:+/-0.25

.XXX Tolerance:+/-0.13

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.

Electrical Specifications: at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

LED Specifications:

Emitting
color

Dominant wavelength(nm)
(min/max)

Forward voltage
(v)

Forward current
(A)

Type

Green

570-575

1.8-2.4

20mA

Squareness

Yellow

585-590

1.8-2.4

20mA

Squareness

PoE+ RJ45 Connector with internal isolation Transformer module for Industrial application

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages


PoE+ RJ45 Connector with internal isolation Transformer module for Industrial application
