KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-60BPOEGYZENL
Price :
Please contact us to get the latest price.
LEDS/EMI fingers :
custom
RJ45 Suitable :
for CAT5&6 Ethernet Cable or UTP
Application :
lan,bridge,PC,router,usb hub network rj45
Gender :
Female RJ45
Feature :
High performance,magnetic
Product Name :
RJ45 Ethernet Jack
LED :
Green/Yellow
operation temperature :
-40°C~+85°C
storage temperature :
-40°C~+85°C
Description

KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface

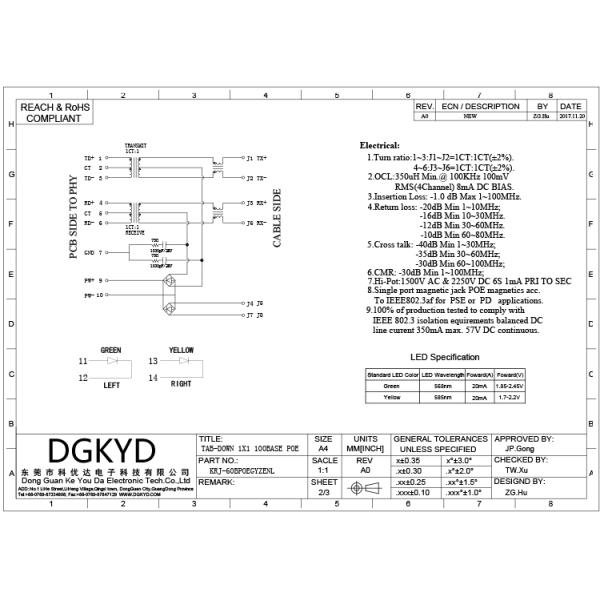

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle)with LEDS
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

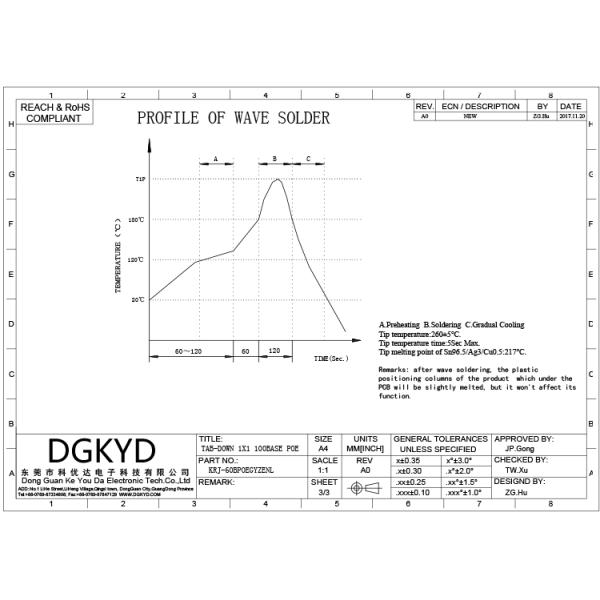

  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3mm
  • EMI fingers:YES

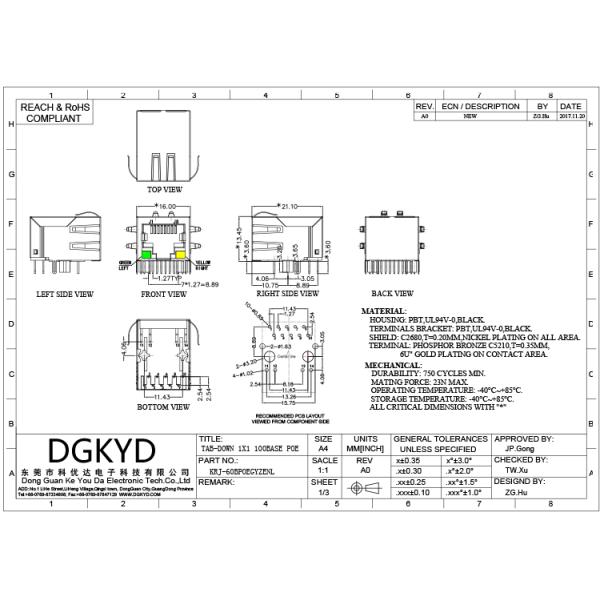

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

KRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interfaceKRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interfaceKRJ-60BPOEGYZENL with PoE power supply RJ45 connector 100M integrated filter network socket network cable interface

Power over Ethernet (PoE), combining data and power supply via Ethernet cabling

Power over Ethernet or PoE describes any of several standard or ad-hoc systems which pass electric power along with data on twisted pair Ethernet cabling. This allows a single cable to provide both data connection and electric power to devices such as wireless access points, IP cameras, and VoIP phones.
