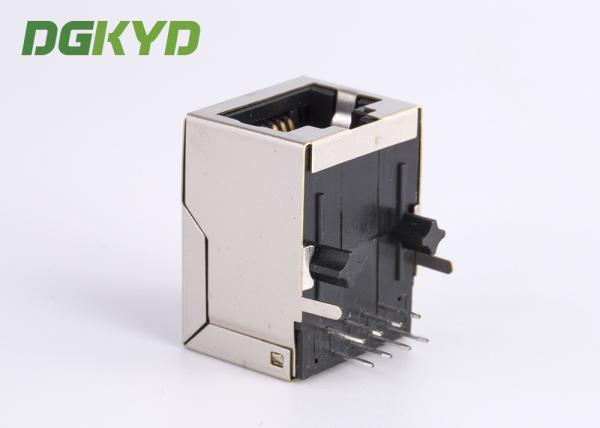

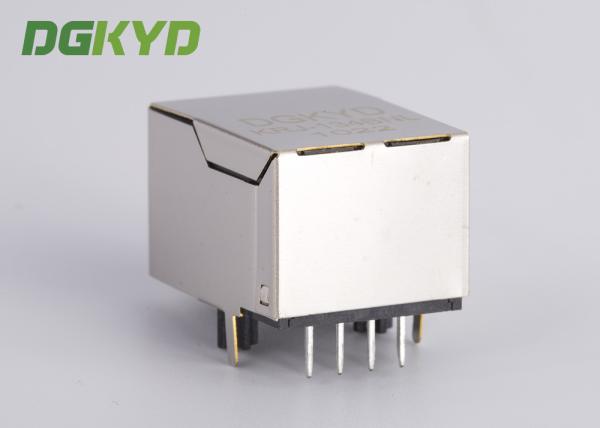

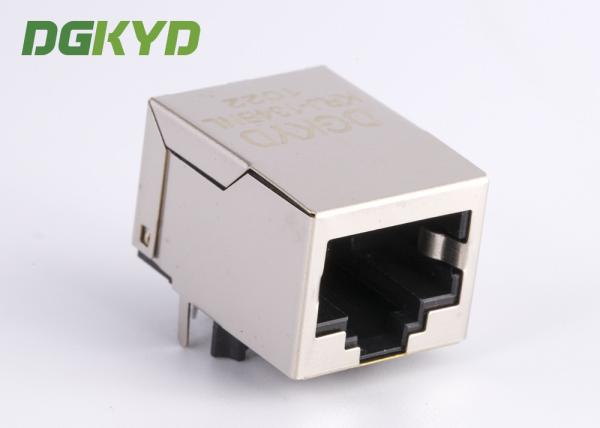

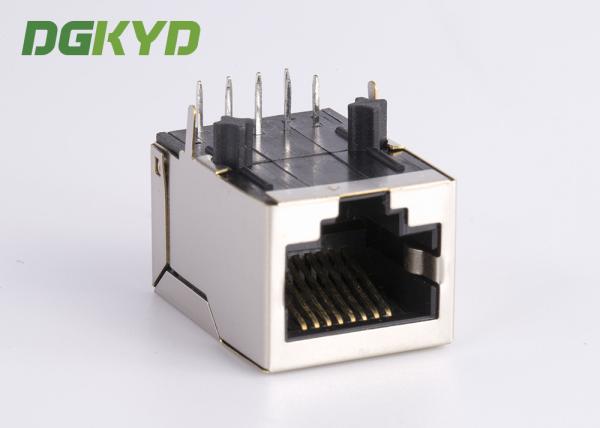

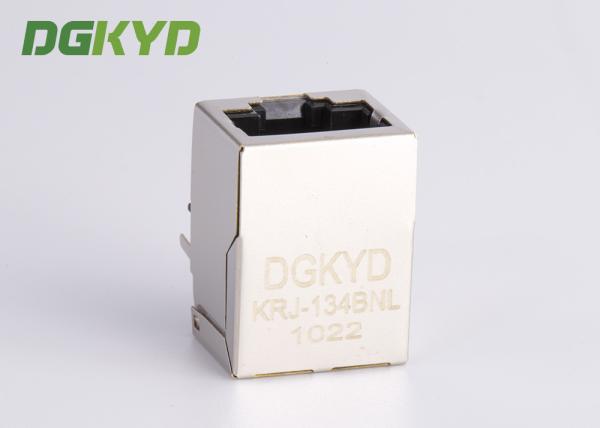

Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Single Port Female RJ45 Ethernet Connector Jack with isolation filter
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-134BNL
Price :
Please contact us to get the latest price.
LEDS/EMI fingers :
custom,as your need
Feature :
High performance,magnetic
RJ45 Suitable :
for CAT5&6 Ethernet Cable or UTP
Application :
lan,bridge,PC,router,usb hub network rj45
Gender :
Female jack
Product Name :
RJ45 Ethernet connector
Description

1x1 Single Port RJ45 Female Jack , LED Network Filter Port Side Entry

Part Number KRJ-134BNL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option Without LED
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Housing Material  PBT Polyester Housing Color Black
Operation Temperature -40℃ to +85℃ UL Flammability Rating  UL 94V-0

Single Port Female RJ45 Ethernet Connector Jack with isolation filterSingle Port Female RJ45 Ethernet Connector Jack with isolation filterSingle Port Female RJ45 Ethernet Connector Jack with isolation filter

Our Featured LAN Components
Below are a few of our featured products designed to meet your most demanding product needs for local area network applications.
PoE & PoE+ Chokes
Ethernet Chokes
Ethernet Connector Modules
HDBaseT Transformers
G.Fast Transformers
