1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-100SH5NL
Price :
Please contact us to get the latest price.
Product Name :
RJ45 Ethernet Connector
Gender :
Female
Application :
lan,bridge,PC,router,usb hub network rj45, IP camera
RJ45 Suitable :
for CAT5&6 Ethernet Cable or UTP
Feature :
High performance, Integrated magnetics
LEDS/EMI fingers :
for optional
Description

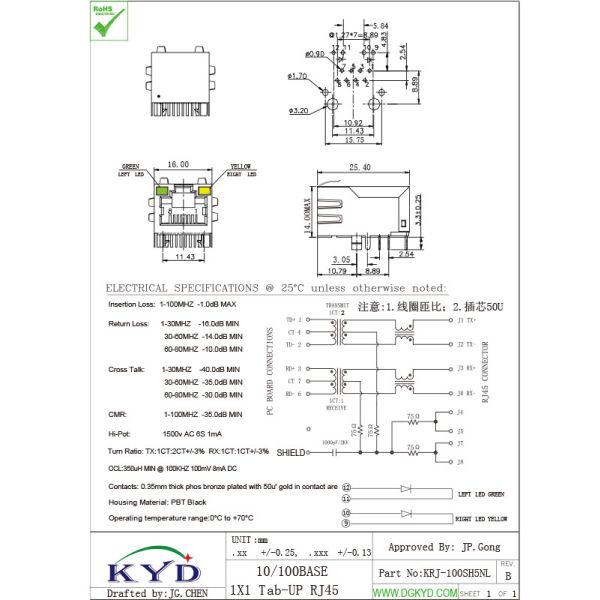

1x1 single port RJ45 Ethernet Connector 100M cat 5 plug modular rj45

Part Number
 KRJ-100SH5NL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type 

Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
 up
Filter
With Filter
LED Option
 G/Y LED
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100/1000/10G BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
single port
Number of Positions 
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range : -40℃ to +85℃
  • Storage temperature range : -40℃ to +85℃

1x1 single port RJ45 Ethernet Connector 100Mb cat 5 manetic modular jack G/Y led

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customerfirstly ,100% test, 0 defect, short lead time are our best advantages
