Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-015NL
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Product Name :
RJ45 with Transformer
Shield RJ45 :
yes
No.Port :
RJ45 single port
Type :
RJ45 Female
Housing :
Phenolic, PBT Black (UL94V-0)
Plastic core :
Glass fiber filler PBT Black(UL94V-0),ROHS
Description

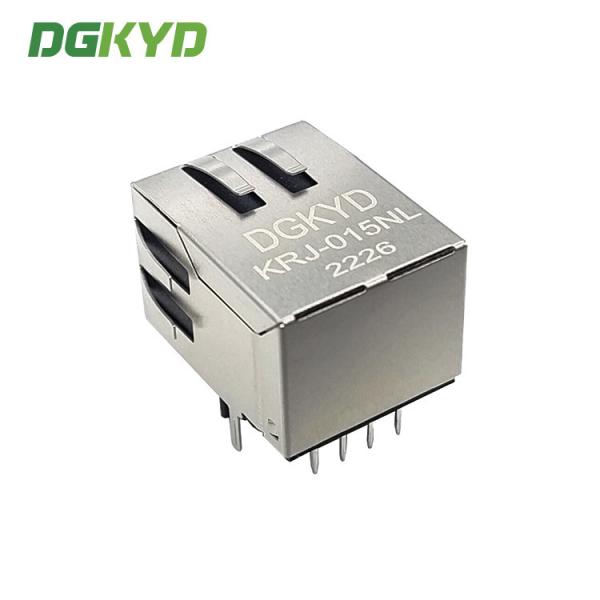

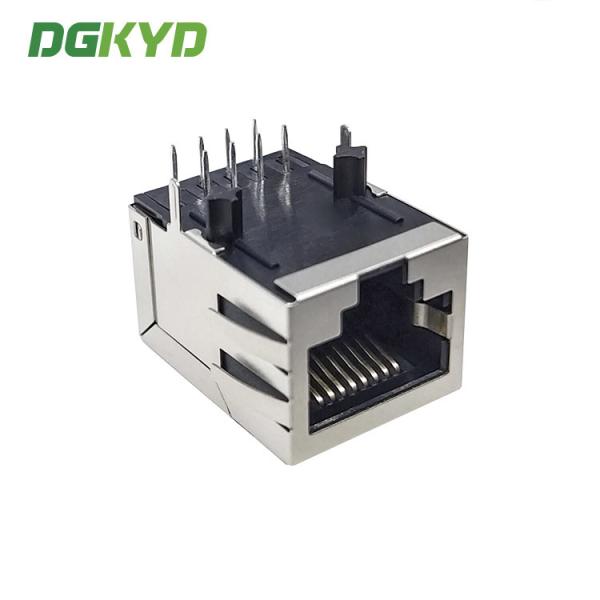

DSL / ADSL Right Angle RJ45 with Transformer 10 / 100base Rohs Compliant

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 without LED with Side Entry (Right Angle)
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:NO
  • EMI fingers:YES
  • Usage:J0011D21NL/KRJ-015NL

Mechanical Dimensions:(UNIT:mm)

DSL / ADSL Right Angle 10 / 100 base RJ45 female jack with transformer,Rohs CompliantDSL / ADSL Right Angle 10 / 100 base RJ45 female jack with transformer,Rohs CompliantDSL / ADSL Right Angle 10 / 100 base RJ45 female jack with transformer,Rohs Compliant

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

The major benefit of our design of the Universal 10GB RJ45 connector is it permits users to insert and remove components. A user of our Universal 10GB RJ45 connector has the capability to purchase 10GB transformers from multiple sources. Second sourcing reduces leadtimes. There is also the advantage of removing failed components without expensive repairs. When you add up all the advantages you can see that our universal solution will be embraced by many users.
