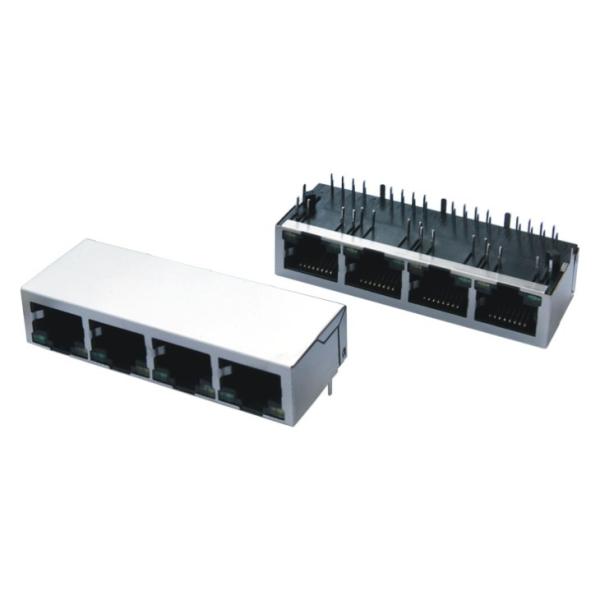

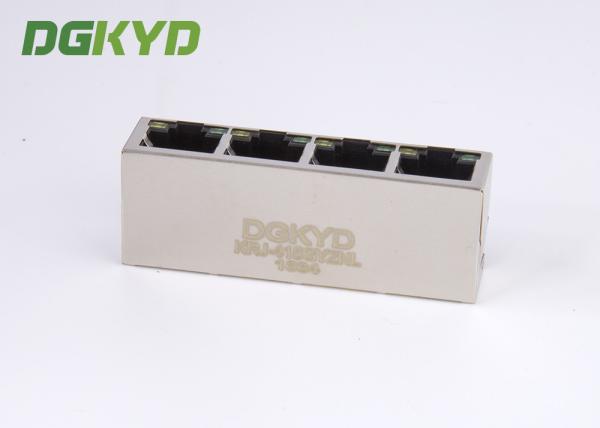

4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-415GYZNL
Price :
Please contact us to get the latest price.
Performance :
CAT5/5e
Port Type :
Ganged 4 port
Description

4-Port RJ45 Multiple Port Connectors 100M Magnetic Connector

P/N:KRJ-415GYZNL

Descriptions:

  • 10/100Base-Tx RJ45 4 port 1X4 Vertical with LEDS with side entry
  • 4 port 1X4 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:YES
  • EMI:NO
  • LEFT/Green,RIGHT/Yellow
  • Usage:KRJ-415GYZNL

4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

4 Port RJ45 Multiple Port Connectors With 100M Magnetics Module
