Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-USB02YGZNL
Price :
Please contact us to get the latest price.
Housing Material :
PBT black UL-94V-0
Connector Type :
RJ45 + USB 2.0
PCB Mount Angle :
Right Angle
Mount Stlye :
DIP
Description

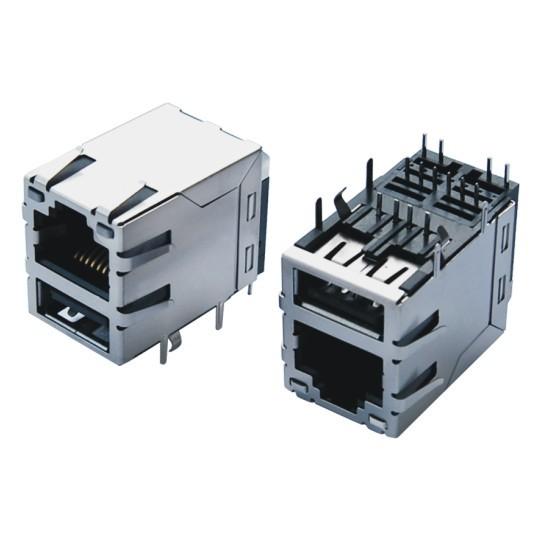

Integrated Tab Up RJ45 USB Network Connector with USB 2.0 for PCMCIA Net Card

Integrated Tab Up RJ45 USB Network Connector with usb 2.0 for PCMCIA Net Card

1x1 Tab Up Transformer RJ45 With USB with led and EMI(10/100M) KRJ-21USBNL

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with USB
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:29.0mm
  • LEDS:YES
  • EMI fingers:YES
  • LEFT:Green,RIGHT:Yellow
  • Usage: KRJ-USB02YGZNL

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,

100% test, 0 defect, short lead time are our best advantages
