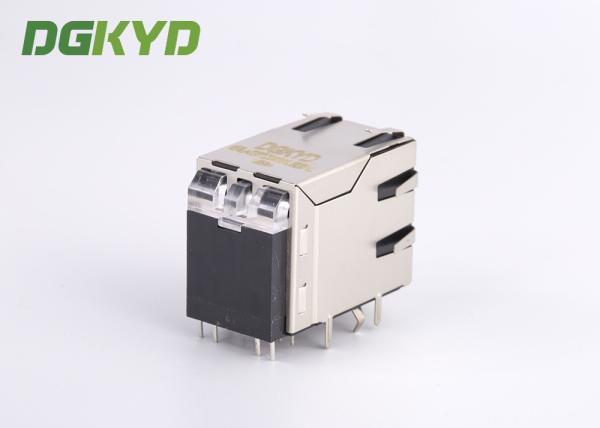

Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-007DUSBNL
Price :
Please contact us to get the latest price.
Housing Material :
PBT BLACK
Contact Mating Area Plating :
GOLD 6u'' / 15u"/ 30u"/ 50u" for optional
Metal Shield :
TIN PLATED PHOSPHOR BROZNE
LED Color :
Green&Yellow
Latch :
Up
PCB Mount Angle :
SIDE ENTRY
Mount Stlye :
Though Hole
Jack Type :
RJ45 + USB
Description
DESCRIPTION

China supplier KRJ-007DUSBNL Industrial USB RJ45 Connector single port with LED
ELECTRICAL
Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
High performance for maximum EMI suppression
350uH minmum OCL with 8mA bias current
1.Current Rating 1.5 amps
2.Voltage Rating 125vac
3.Insulation Resistance 500 MΩmin
4.Contact Resistance 30 MΩmax
5.Withstanding Voltage AC 1500V RMS 50Hz or 60Hz 1 min
Instertion Loss: -1.2dB Maximum @100KHz-100MHz
Return Loss: -18dB Minimum @1MHz-30MHz
-14dB Minimum @30MHz-60MHz
-12dB Minimum @60MHz-80MHz
Common Mode Rejection: -30dB Minimum @1MHz-100MHz
Cross Talk: -30dB Minimum @1MHz-100MHz
MECHANICAL
1.Insertion Force 2 CONTACTS....350g 4 CONTACTS….500g 6 CONTACTS….750g
8 CONTACTS….900g 10 CONTACTS....1050g
2.Retention Strength 7.7KG.F min between jack and plug
3.Durability 800 mating cycles min
MATERIAL
1.Housing ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
2.Contact Wire Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness
phosphor bronze alloy selective gold plating over nickel
3.Shield 0.20~0.25mm thickness brass with tin plated
4.Gold Plating 3u inch,6u inch,15u inch,30u inch,50u inch
5.LED Specification LED Color: LED Wavelength: Forward(V MAX): Typical (V TYP): Luminous Intensity:
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30 MCD
LED intensity/wavelength measured with Photo Research PR-650 Colormeter
With a forward current of 20 mA,Absolute Maximum Ratings (Ta=25°C)

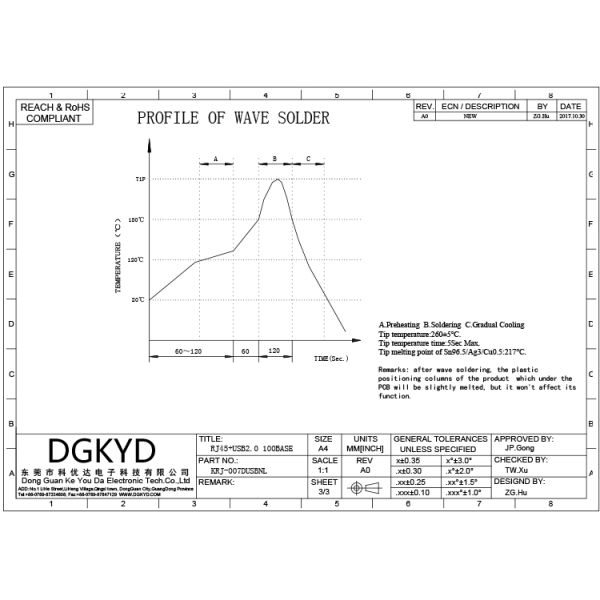

6.RoHS peak wave solder RoHS peak wave solder temperature rating 240°C±5°C
ENVIRONMENTAL
Operating Temperature: -40°C to 85°C
Working Temperature -40°C to 85°C
APPLICATION
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.


Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated


LED Specification:

Emitting
color

Dominant wavelength(nm)
(min/max)

Forward voltage
(v)

Forward current
(A)

Type

Green

570-575

1.8-2.4

20mA

Squareness

Yellow

585-590

1.8-2.4

20mA

Squareness

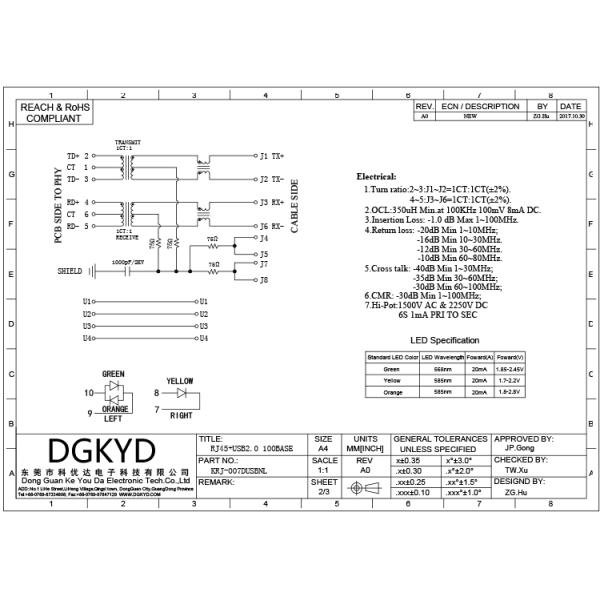

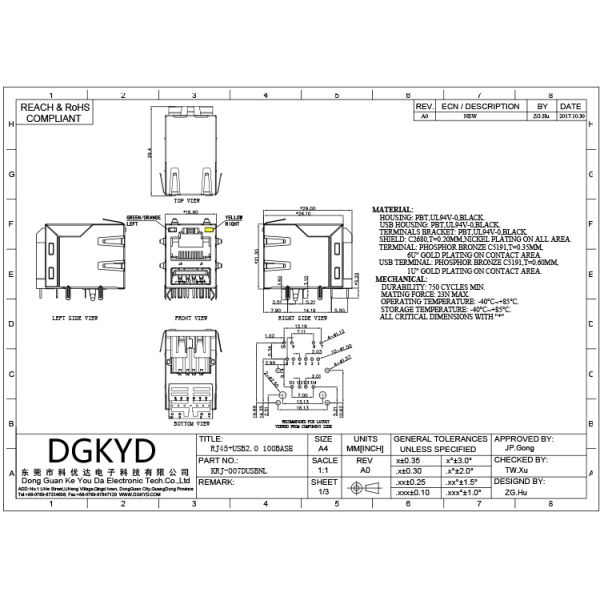

► Product Drawing


Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LEDIndustrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LEDIndustrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
Application :
Industrial Dual Deck USB Rj45 Connector Cat 5e Rj45 Connector With USB , G/Y LED
