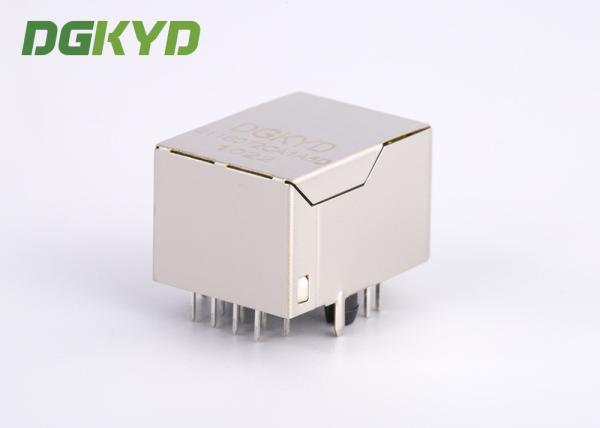

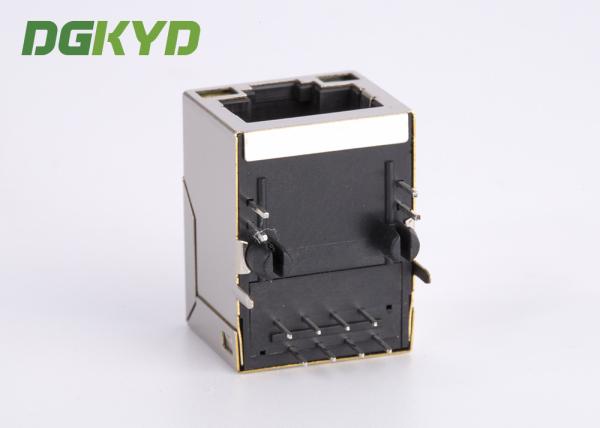

Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
DGKYD211B072CA1A4D
Price :
Please contact us to get the latest price.
Modular Jack :
RJ45 with integrated magnetics
Port Configuration :
single
Port Matrix Configuration :
1x1
Connector Style :
Jack
Shielded :
Yes
Performance Category :
Cat 5
Description

100M RJ45 Single Port Tap Up with Shielded RJ45 with integrated magnetics

  • 10/100Base-Tx RJ45 single port 1X1 with LEDS
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap UpMetal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap UpMetal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up

RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,

IP phone, internet set top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,

DSL／ADSL and so on.

For example:

Metal Shielded 100MB RJ45 Integrated Magnetics Connector Module With POE Single Port Tap Up
