Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-202GYDNL
Price :
Please contact us to get the latest price.
Modular Jack Type :
rj45 with integrated transformer
Port configuration :
Single
Performance Category :
CAT6
Entry Location :
Side entry
Description

Right angle dip modular jack 8P8C rj45 with transformer Surface Mount

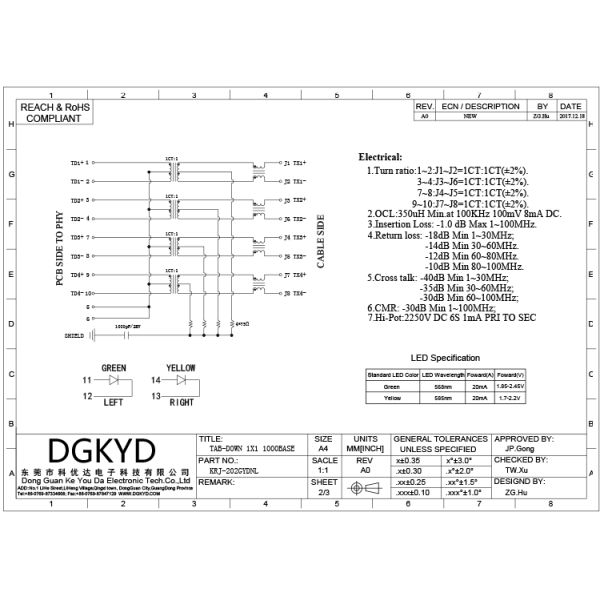

Descriptions:

  • 10/100/1000Base-Tx RJ45 single port 1X1 Vertical with LEDS with side entry
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs& Reach compliant
  • Length:21.3mm
  • LEDS:YES
  • LEFT LED:Green,RIGHT LED:Yellow

Right Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface MountRight Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface MountRight Angle Dip Modular Jack 8P8C Rj45 With Transformer Surface Mount
