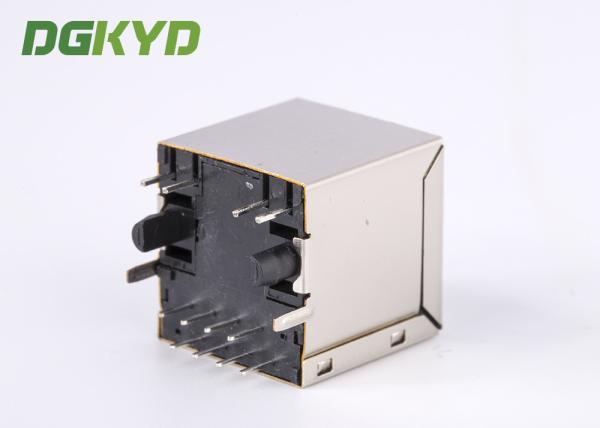

Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-180CYGLNL
Price :
Please contact us to get the latest price.
Speed :
Cat 5 /5e
Port Orientation :
Top Entry
Shield :
Yes
PACKAGE :
THT
Description

Vertical 180 Degree ethernet rj45 connector shielded rj45 jack with magnetics

  • 10/100Base-Tx RJ45 single port 1X1 Vertical top/ entry with LEDS
  • Single port 1X1 Tab-Up 180 degree RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:16.85mm

Vertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With MagneticsVertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With MagneticsVertical 180 Degree Ethernet Rj45 Connector Shielded Rj45 Jack With Magnetics

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
