Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Model Number :
KRJ-256WDNL
Price :
Please contact us to get the latest price.
Modular Jack Type :
RJ45 with integrated magnetics
Status Indicator :
None
PCB Termination Method :
Through Hole
Circuit Application :
Signal
Port configuration :
Single
Housing Color :
Black
Description

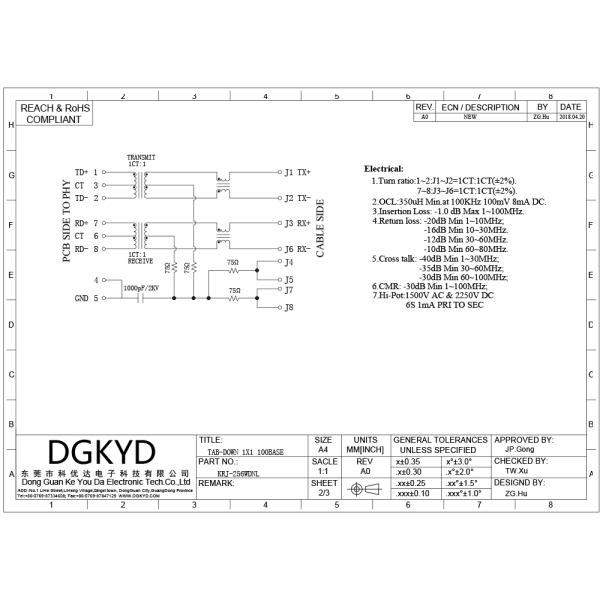

Shielded right angle magnetics RJ45 Connector Communication Female ethernet Jack

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 side entry
  • Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8

Shielded Right Angle Magnetics RJ45 Connector Communication Female Ethernet JackShielded Right Angle Magnetics RJ45 Connector Communication Female Ethernet JackShielded Right Angle Magnetics RJ45 Connector Communication Female Ethernet Jack

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,

internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

For example:

Shielded Right Angle Magnetics RJ45 Connector Communication Female Ethernet Jack

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,

100% test, 0 defect, short lead time are our best advantages
