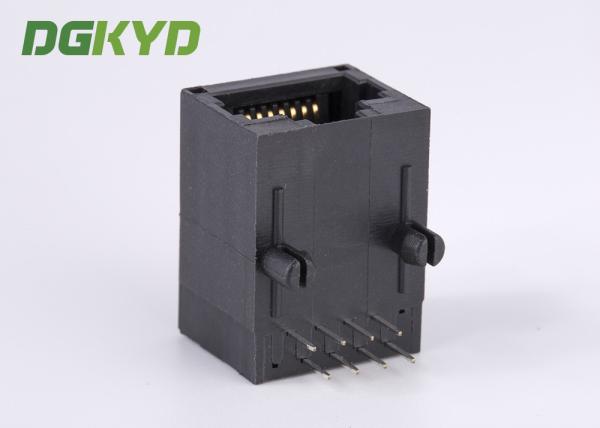

10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-160DJWFKNL
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Price :
Please contact us to get the latest price.
Performance :
Cat5
Port Configuration :
1x1
Shield :
Unshielded
Latch :
Down
Description

10/100BASE RJ45 female jack 1x1 Tab Down RJ45 Network Connector without shield,PBT black

Descriptions:

  • 10/100Base-Tx RJ45 single port 1X1 Right Angle without shield
  • Single port 1X1 Tab-Down RJ45 with internal magnetics ,Housing PBT black
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range : -40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Rohs compliant
  • Length:20.5mm(0.80inch)
  • LEDS:NO

10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black10/100 BASE 1x1 Tab Down RJ45 Network Connector with transformer PBT black
