25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-015SHGYYENL
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Price :
Please contact us to get the latest price.
Performance Category :
Cat 5/5e
Latch Orientation :
Up
Status Indicator :
LED
Number of Position :
8
Profile :
Standard
PCB ternimation Method :
Through Hole
Description

25.4mm 10/100BASE RJ45 Combo, Single port Tap Up rj45 Modular Jack, connector plug, telecom connector

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated
  • 10/100Base-Tx RJ45 single port 1X1 side entry

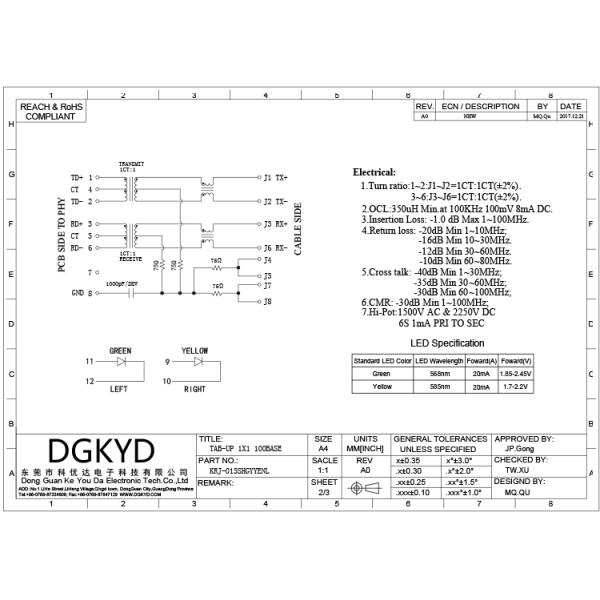

  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:25.4mm

25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y25.4mm single port tap up rj45 modular jack 10/100 base-tx telecom connector G/Y

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
